Leak Check Valve Assembly: Installation

Install the leak check valve assembly bracket.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Install the leak check valve assembly.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

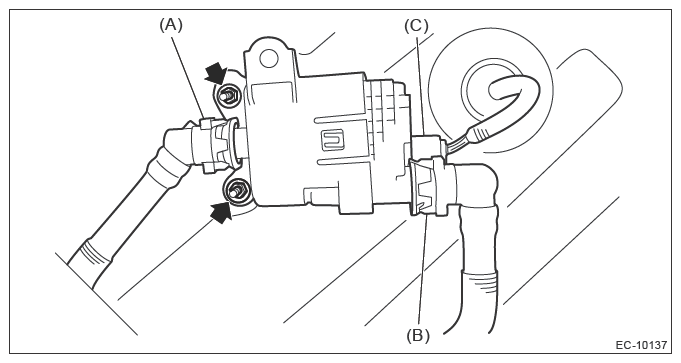

Connect the connector (C).
Connect drain tube A (A) and drain tube B (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Install the spare tire.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
