EGR Control Valve: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  3. Disconnect the connector (A).
  4. Remove the bolts securing the EGR control valve to the EGR cooler.
    G13198500Courtesy of SUBARU OF AMERICA, INC.

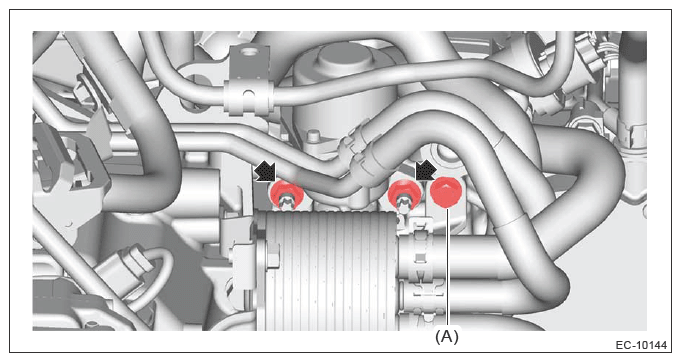

  5. Loosen the bolts (A) holding the EGR cooler.
  6. Remove the nuts securing the EGR control valve.
    G13198501Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the stud bolt using TORX® socket E8, and remove the EGR control valve.
    G13198502Courtesy of SUBARU OF AMERICA, INC.

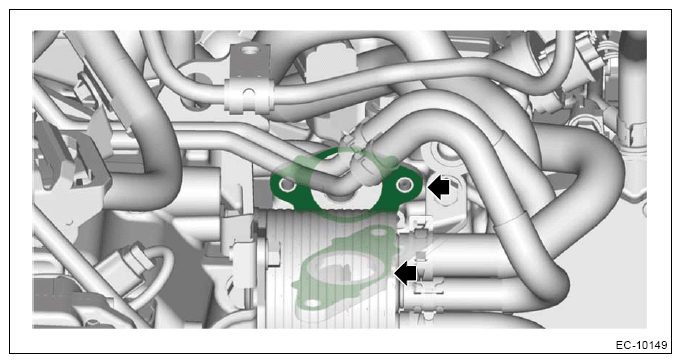

  8. Remove the gasket.
    G13198503Courtesy of SUBARU OF AMERICA, INC.
