Reverse Assist Braking Control Module: Removal
NOTE:
The sonar ECM assembly is installed under the front seat LH. Remove the sonar ECM assembly after sliding the front seat LH as necessary.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

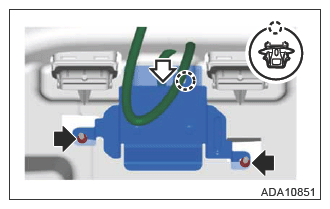

- Remove the sonar ECM assembly.
- Remove the nut to remove the harness clip.
- Disconnect the connector and remove the sonar ECM assembly.
