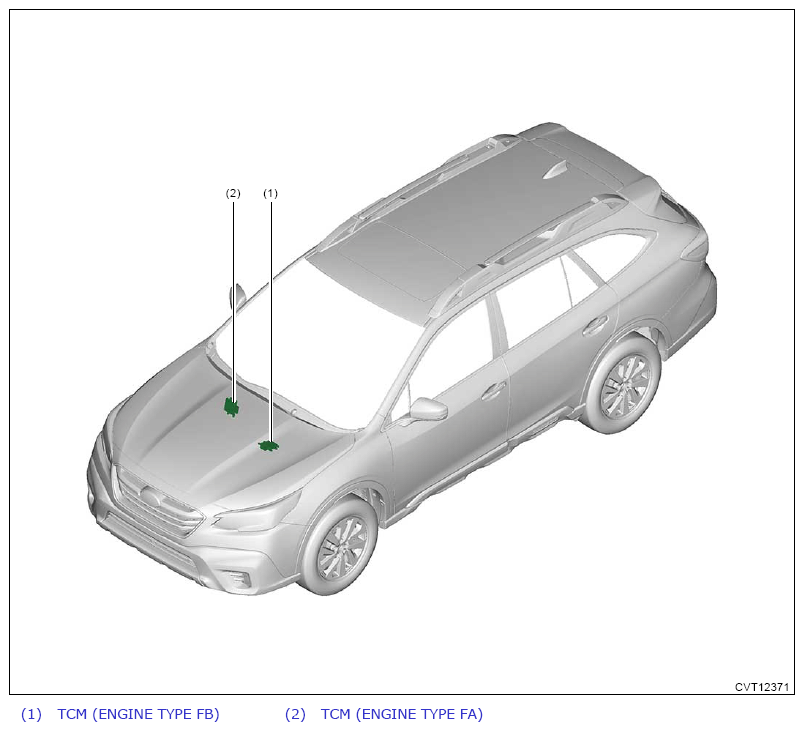

Continuously Variable Transmission (Diagnostics): Electrical Component Location: Location
Courtesy of SUBARU OF AMERICA, INC.

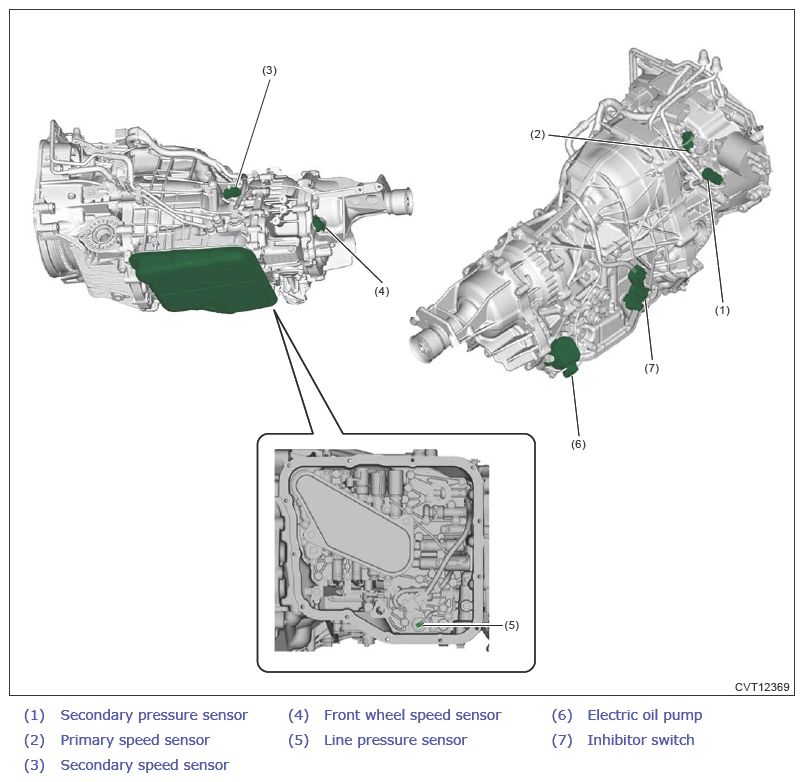

ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.

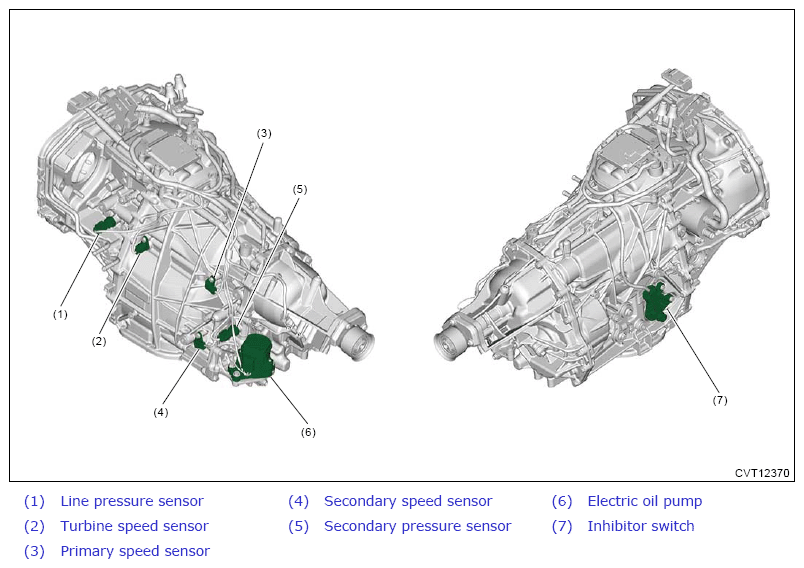

ENGINE TYPE FA
Courtesy of SUBARU OF AMERICA, INC.
