Intermediate Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

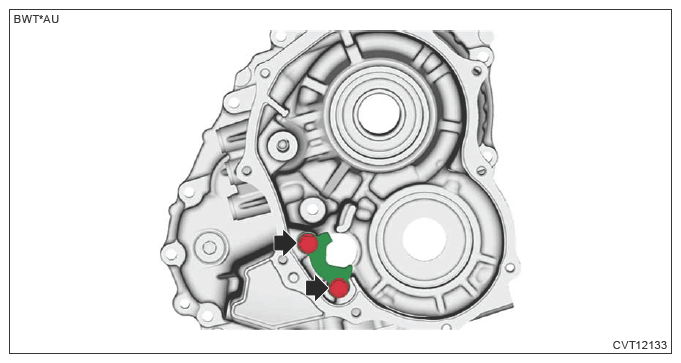

  1. Remove the parking support.
    G13622146Courtesy of SUBARU OF AMERICA, INC.
  2. Remove all plugs.
    G13622147Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Reverse Brake>DISASSEMBLY .
