Transmission Case: Disassembly
- Remove the oil stopper plate.
 Courtesy of SUBARU OF AMERICA, INC.
|

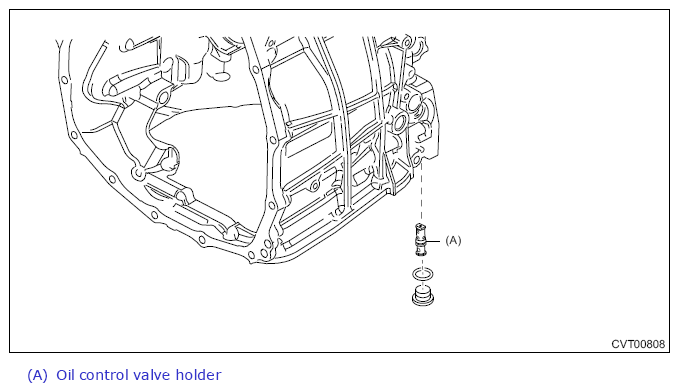

- Remove the plug, and remove the oil control valve holder.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the O-ring from the oil control valve holder.
- Remove all plugs.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the oil seal using a screwdriver wrapped with cloth etc.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the ball bearing of the secondary pulley using the ST1 and ST2.
- Remove the claw (A) of ST1, and attach the claw of ST2.
Preparation tool:
ST1: PULLER ASSY (398527700)
ST2: CLAW (18760AA000)
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the ball bearing of the secondary pulley using the ST1 and ST2.
Preparation tool:
ST1: PULLER ASSY (398527700)
ST2: CLAW (18760AA000)
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the oil guide.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the roller bearing.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the thrust bearing.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the CVTF filter cover and gasket.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the CVTF filter.
 Courtesy of SUBARU OF AMERICA, INC.
|
