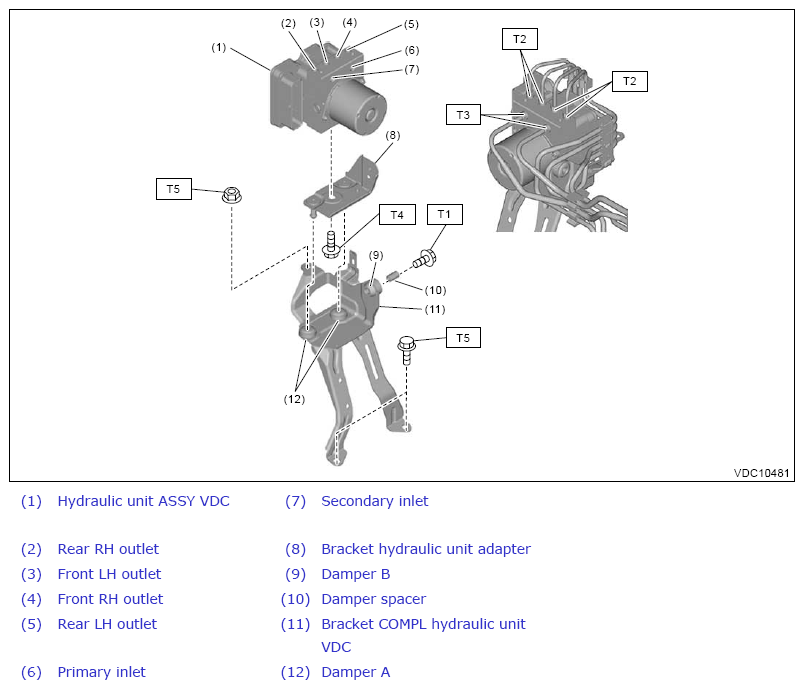

VDC Control Module And Hydraulic Control Unit (VDCCM And H/U)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 15 (1.5, 11.1)
T3: 19 (1.9, 14.0)
T4: 27 (2.8, 19.9)
T5: 33 (3.4, 24.3)
