Model With Push Button Ignition Switch

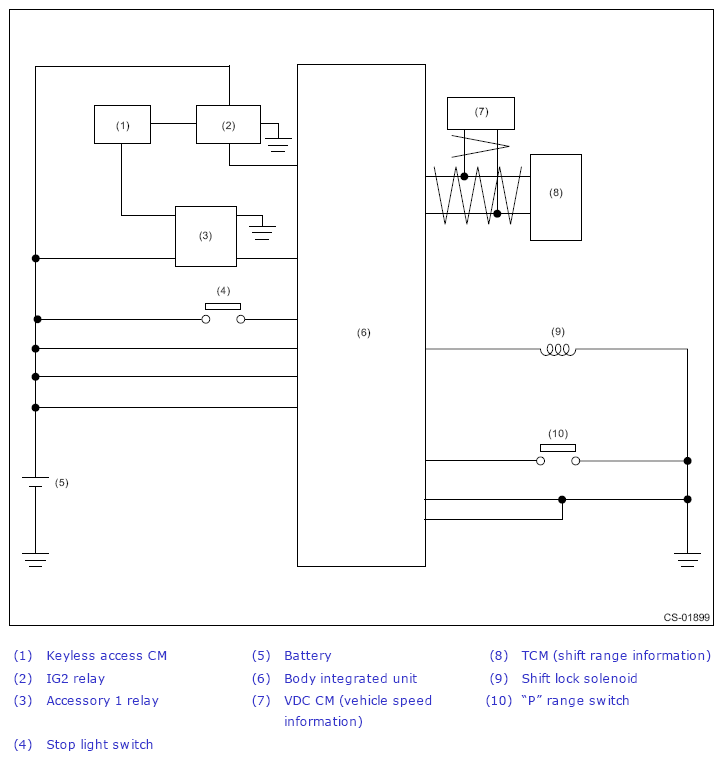

G13602832Courtesy of SUBARU OF AMERICA, INC.

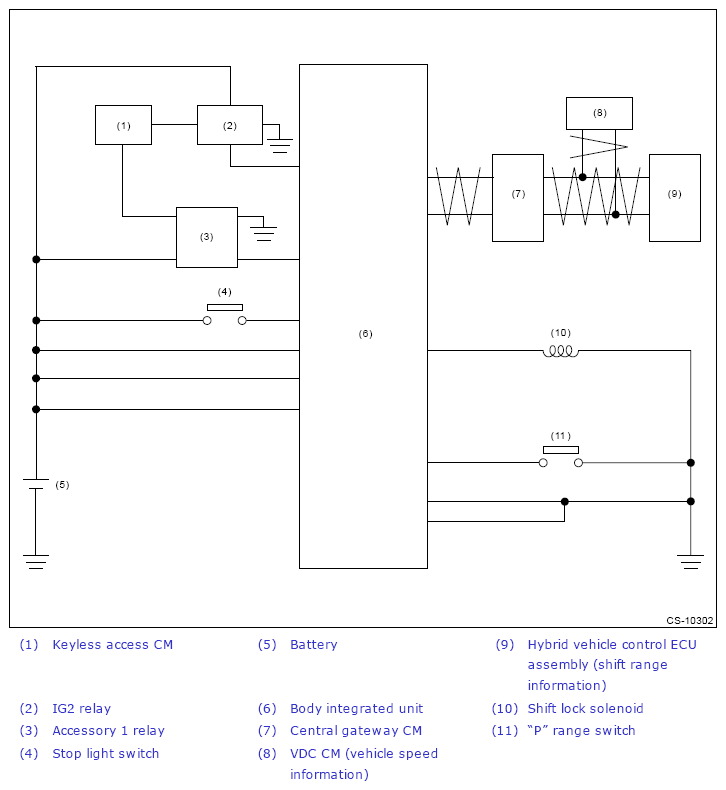

G13602833Courtesy of SUBARU OF AMERICA, INC.
