Seat Belt Inner - Front
CAUTION:
- Before installation, make sure that the correct part is used.
- During installation, make sure that the seat belts are not twisted.
- Check that there is no pinching of the seat belt harness. Wrong harness rooting may cause the harness short from pinch.
- Do not forget the wave washer, when installing front seat inner belt assembly.

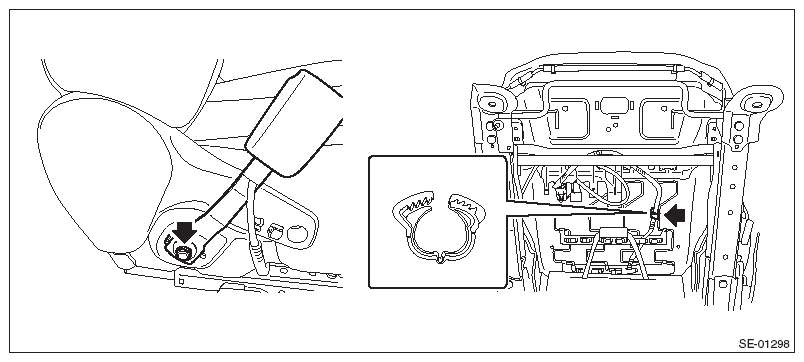

- Install the seat belt inner - front.
Tightening torque:
53 N.m (5.4 kgf-m, 39.1 ft-lb)
- Locate the seat belt harness and retain it with a harness clip.
- Install the seat assembly to the body. Refer to SEATS>FRONT SEAT>INSTALLATION .
- Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
