Pitching Stopper

  1. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

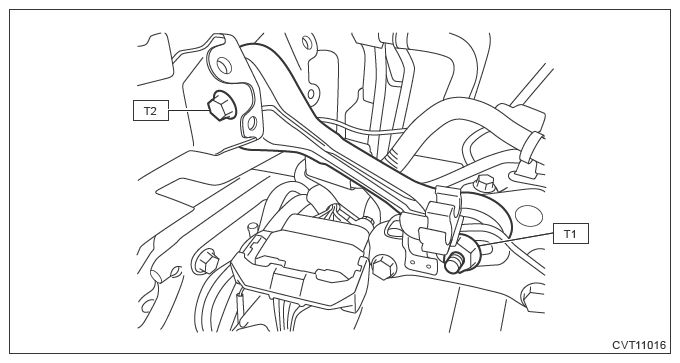

    Fig 1: Pitching Stopper Bolts (With Tightening Torque Specification)
    G13200018Courtesy of SUBARU OF AMERICA, INC.
  2. Install the pitching stopper plate.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  3. Connect the transmission radio ground cord.
    1. Connect the coupling connector.
    2. Install the clips.
  4. Connect the air breather hose to the clip.
  5. Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
