Rubber Bushing Arm Front

Put an alignment mark on the arm COMPL front based on the gap of bushing intermediate plate for the rubber bushing arm front.
CAUTION: Always put an alignment mark for aligning the position on bushing installation.

Courtesy of SUBARU OF AMERICA, INC.

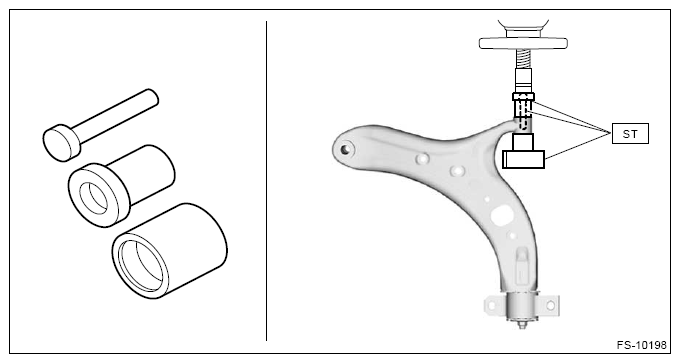

Using the ST and a press, remove the rubber bushing arm front.
Preparation tool:

ST: INSTALLER & REMOVER SET (927680000)

Courtesy of SUBARU OF AMERICA, INC.
