Ball Joint: Removal
- Lift up the vehicle, and then remove the front wheels.
- Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
.
- Remove the ball joint COMPL.
- Pull out the cotter pin (a), and remove the castle nut (b).
- Use a tie-rod ball joint puller (c) to detach the arm assembly front (d).
Preparation tool:
Tie-rod ball joint puller: HASCO JF-425L-40 or equivalent
 Courtesy of SUBARU OF AMERICA, INC.
|

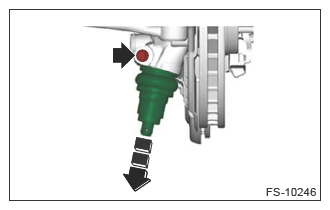

- Remove the bolt and pull out the ball joint COMPL.
 Courtesy of SUBARU OF AMERICA, INC.
|
