Front Suspension

Electric power steering model

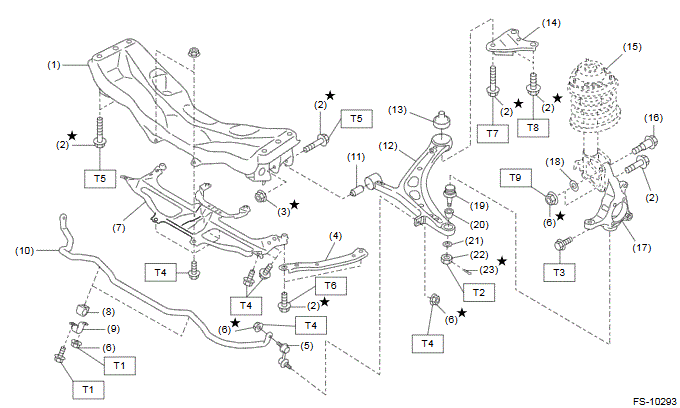

Fig 1: Exploded View Of Front Suspension Components (Electric Power Steering Model)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Front crossmember COMPL
(2)	Flange bolt
(3)	Self-locking nut
(4)	Support plate - front crossmember
(5)	Front support
(6)	Stabilizer link ASSY
(7)	Flange nut
(8)	Front crossmember support
(9)	Bushing - stabilizer
(10)	Clamp - stabilizer bushing
(11)	Front stabilizer
(12)	Bushing front - front arm
(13)	Front arm ASSY
(14)	Pillow ball bushing
(15)	Front arm rear plate
(16)	Front Strut ASSY
(17)	Adjusting bolt
(18)	Housing ASSY - front axle
(19)	Adjusting washer
(20)	Ball joint ASSY
(21)	Boss - transverse link
(22)	Washer
(23)	Castle nut
(24)	Cotter pin

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 95 (9.7, 70.1)

T6: 100 (10.2, 73.8)

T7: 140 (14.3, 103.3)

T8: 150 (15.3, 110.6)

T9: 155 (15.8, 114.3)

Hydraulic power steering model

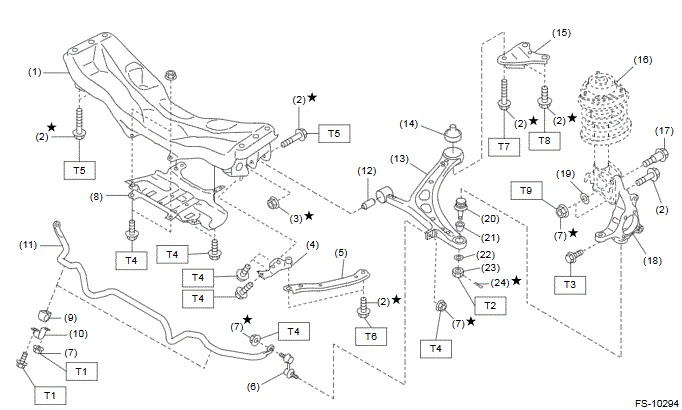

Fig 2: Exploded View Of Front Suspension Components (Hydraulic Power Steering Model)
