Upper Arm: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle, and then remove the rear wheels.
  3. Remove the rear sub frame assembly. Ref. to REAR SUSPENSION>Rear Sub Frame>REMOVAL .

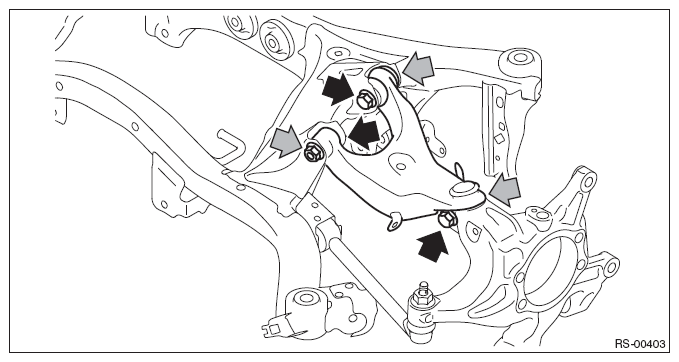

  4. Remove the bolts and nuts to remove the upper arm assembly.
    G08318357
