Oil Pressure System: Wiring Diagram

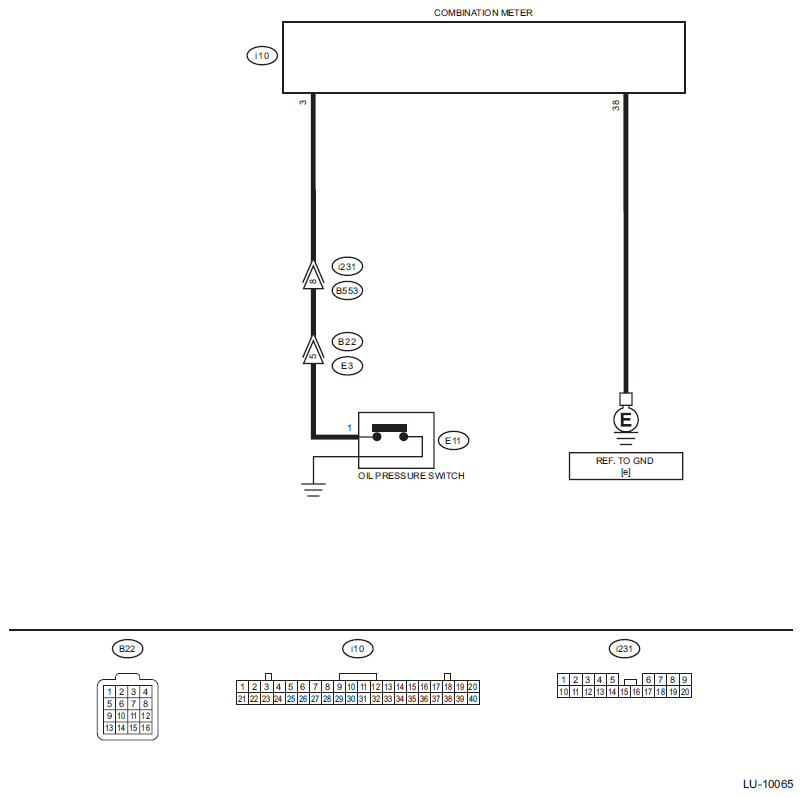

Oil pressure warning system Ref. to WIRING SYSTEM>Oil Pressure Warning Light System>WIRING DIAGRAM .

G11576788
