Solenoid Unit

  1. Remove the select lever with the select cable connected. Ref. to CONTROL SYSTEMS>Select Lever>REMOVAL .
  2. Remove the spacer and gasket. Ref. to CONTROL SYSTEMS>Select Lever>REMOVAL .
  3. Remove the harness connector from the select lever COMPL.
    G10274687Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness from the select lever COMPL.
    G10274718Courtesy of SUBARU OF AMERICA, INC.
  5. Raise the claw using a flat tip screwdriver with a thin tip, and remove the solenoid unit from the select lever COMPL.
    G10274719Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.

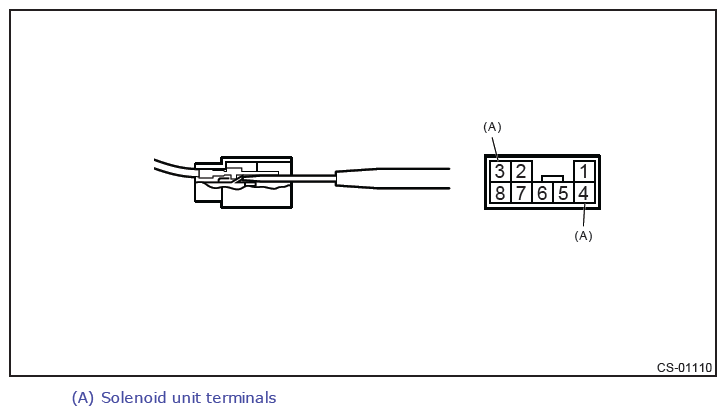

    G12406787Courtesy of SUBARU OF AMERICA, INC.
