Transmission Control Module (TCM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H6DO)>Air Cleaner Case>REMOVAL .

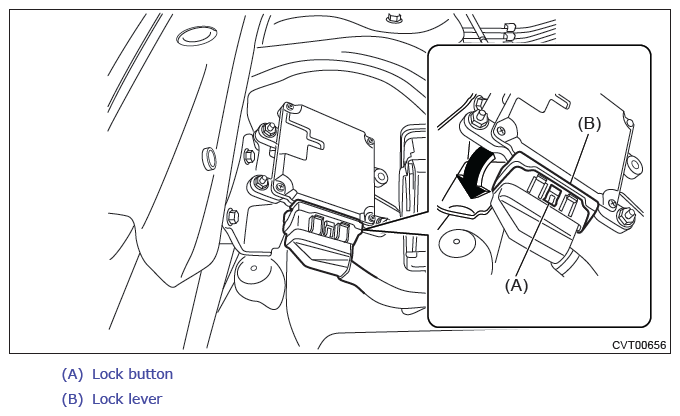

  3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G12410680Courtesy of SUBARU OF AMERICA, INC.

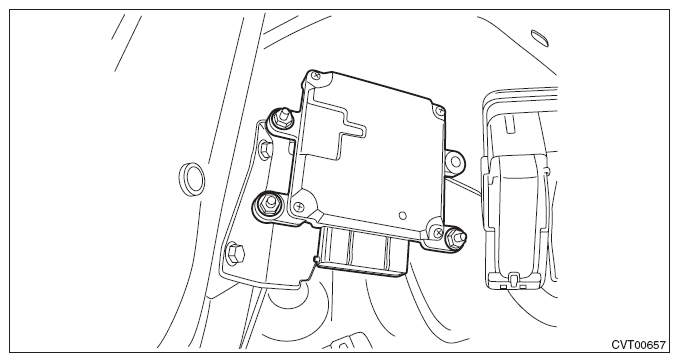

  4. Remove the TCM.
    G10276113Courtesy of SUBARU OF AMERICA, INC.
