Power Rear Gate Control Module: Removal

CAUTION: When the power rear gate control module (PRG CM) is replaced, the memory height function is initialized. Be sure to measure the power rear gate height before starting the operation and set the memory height function again after the operation.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear apron LH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

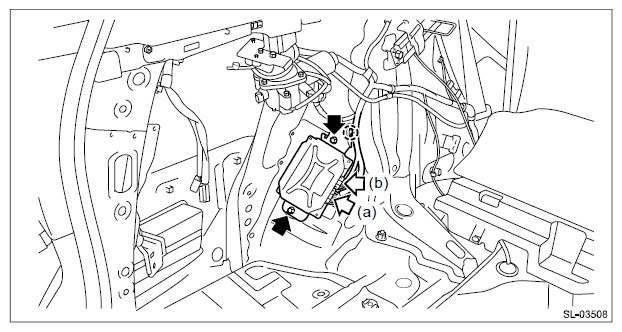

  3. Remove the power rear gate control module (PRG Control Module).
    1. Disconnect the connector (a).
    2. Disconnect the connector (b).
      NOTE: When the connectors are not disconnected in the sequence, a diagnosis code (DTC) may be detected.
    3. Remove the bolts and harness clips and remove the power rear gate control module (PRG Control Module).
    G12513491Courtesy of SUBARU OF AMERICA, INC.
