Engine Control System (Diagnostics) (System & Circuit Tests)
>>
EFI System (FA20)
>>
Starter System (Models Without Smart Entry & Start System)
>>

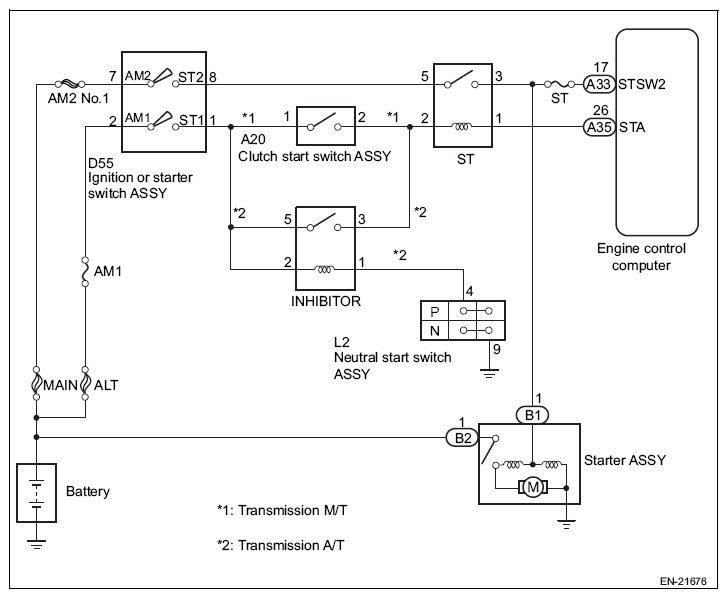

Circuit figure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
