VSC (VDC) OFF Switch: Removal
- Removal of shift lever knob (transmission M/T) (Refer to
REMOVAL
)
- Removal of shifting hole cover SUB-ASSY (transmission M/T) (Refer to
REMOVAL
)
- Removal of shift lever knob (transmission A/T) (Refer to
REMOVAL
)
- Removal of shifting hole cover SUB-ASSY (transmission A/T) (Refer to
REMOVAL
)
- Removal of console switch ASSY
- Disconnect the connector.
- Disconnect the connector clamp. (Transmission A/T)

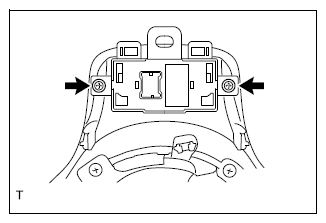

- Remove 2 screws and remove the console switch ASSY from the shifting hole cover SUB-ASSY.
 Courtesy of SUBARU OF AMERICA, INC.
|
