Radar Sensor LH (Master)

Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the bumper face - rear. <Ref. to REMOVAL , Rear Bumper.>
Remove the radar sensor LH (master).
1. Disconnect the connector.
2. Remove the nut and remove the radar sensor LH.

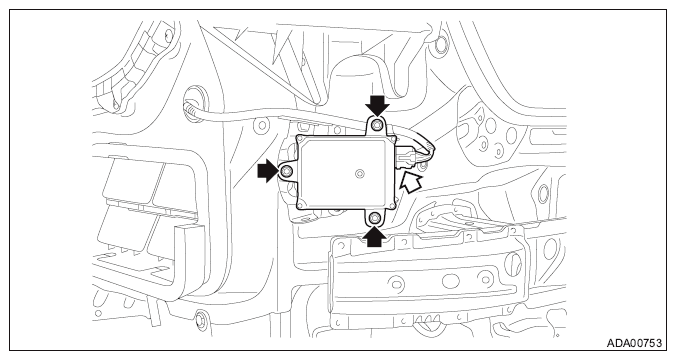

Fig 1: Locating Radar Sensor LH (Master)
Courtesy of SUBARU OF AMERICA, INC.
Remove the radar bracket.
1. Remove the harness clamp.
2. Remove the nut and remove the radar bracket.

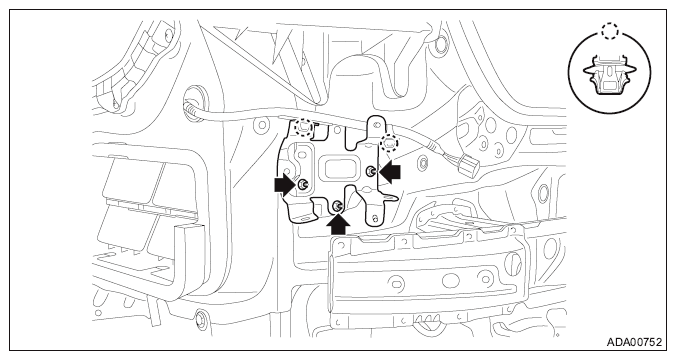

Fig 2: Locating Radar Bracket Nut
Courtesy of SUBARU OF AMERICA, INC.
