Battery Box

  1. Remove the battery. Ref. to BATTERY , REMOVAL, Battery.
  2. Remove the battery box.

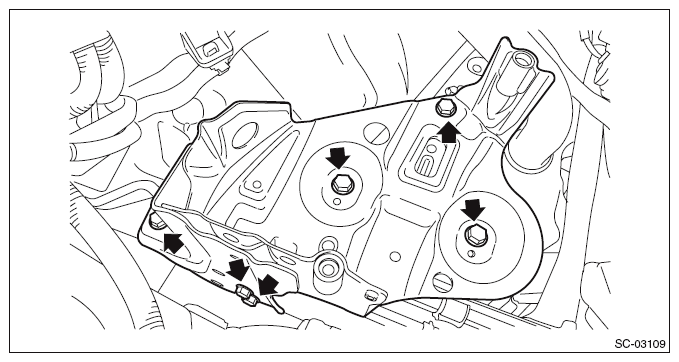

    Fig 1: Identifying Battery Box Bolts
    G10263196Courtesy of SUBARU OF AMERICA, INC.
