Rear Gate Lock And Trunk Lid Lock

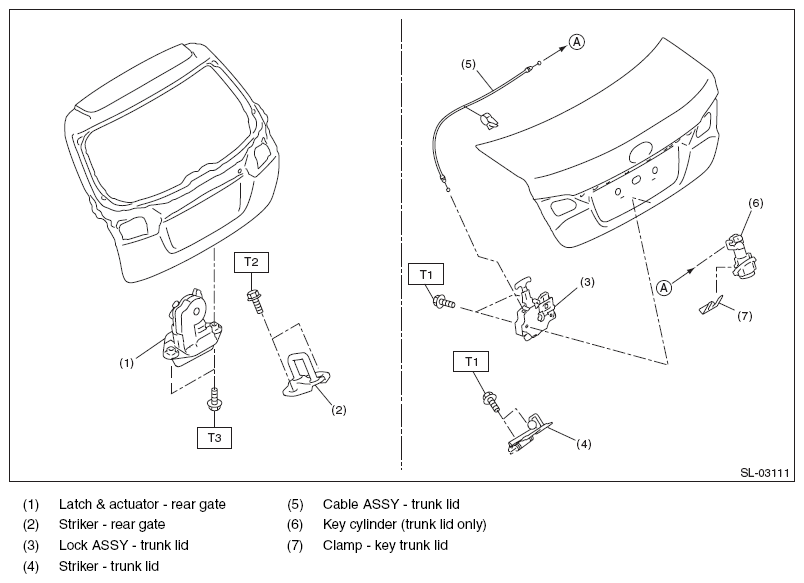

Fig 1: Exploded View Of Rear Gate Lock And Trunk Lid Lock With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 25 (2.5, 18.4)

T3: 28 (2.9, 20.7)
