Inspection steps

CAUTION:
  • When the skid control computer (brake actuator ASSY) has been replaced, make sure to perform [VSC(VDC) Centering Mode].

    (Refer to Work support )

  • Before performing troubleshooting, check the fuse for this circuit.
  1. Check wiring harness and connector (motor relay power supply)
    1. Check the connector of the skid control computer (brake actuator ASSY) for a trouble such as poor engagement or disconnection.

      Criteria: No trouble

    2. Turn IG OFF and disconnect the connector A5 from the skid control computer (brake actuator ASSY).
    3. Check the case and terminal of the connector for deformation and/or corrosion.

      Criteria: No deformation or corrosion.

    4. Check the voltage and resistance between terminals.
    VOLTAGE SPECIFICATIONS

    Inspection terminals Inspection conditions Standard value
    A5-1(+BM) - chassis ground Always 11 to 14V
    RESISTANCE SPECIFICATIONS

    Inspection terminals Inspection conditions Standard value
    A5-38(GND1) - chassis ground Always Less than 1 Ω
    A5-13(GND2) - chassis ground Always Less than 1 Ω

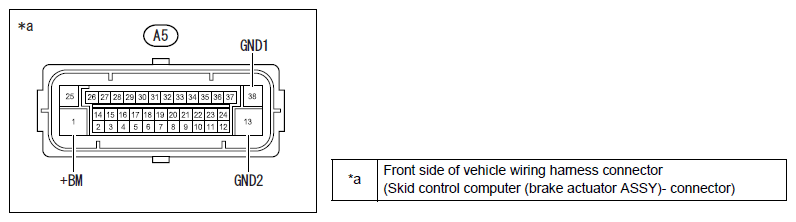

    Fig 1: Identifying Skid Control Computer Connector Terminals (Brake Actuator Assembly)
    G11260658Courtesy of SUBARU OF AMERICA, INC.

    NG: Repair or replacement of wiring harness or connector

    OK

  2. Diagnostic code list recheck
    1. Using SSM4, clear the diagnostic code. (Refer to Checking/clearing diagnostic codes )
    2. Turn IG OFF→ON, and drive for 30 seconds or more at the speed of 40km/h or more.
    3. If the ABS warning light illuminates, check the diagnostic code, using SSM4. (Refer to Checking/clearing diagnostic codes )
    RESULT REFERENCE

    Result Go to
    No output A
    Output exists B
    NOTE:
    • The skid control computer (brake actuator ASSY) self-diagnoses the motor relay circuit when IG is turned ON and the vehicle speed, 40 km/h has been input with the stop light switch turned OFF.
    • If the normal diagnostic code is output, lightly shake the connector, wiring harness, and fuse related to the skid control computer (brake actuator ASSY) to make sure that no error code is output.
    • If an error code has been output by shaking them, check or repair the relevant connector or wiring harness.

    B: Replacement of skid control computer (brake actuator ASSY) (Refer to Removal )

    A: Malfunction reproduction test (Refer to Procedures for malfunction phenomenon simulation )
