MT Gear Shift Cable: Removal
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Note. >
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). < Ref. to
REMOVAL
, Center Exhaust Pipe. >
- Remove the center exhaust cover.
Courtesy of SUBARU OF AMERICA, INC.

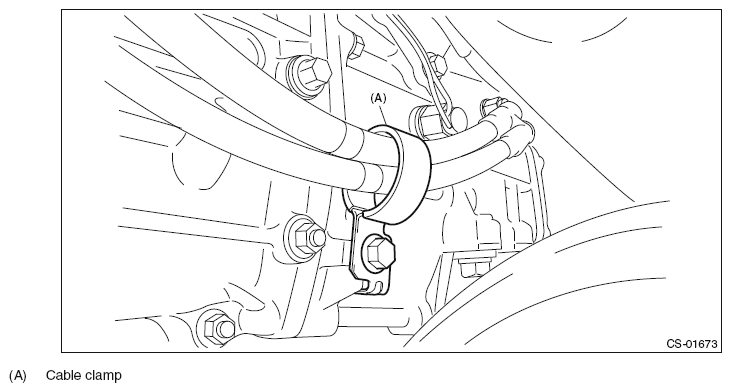

- Remove the cable clamp.
Courtesy of SUBARU OF AMERICA, INC.

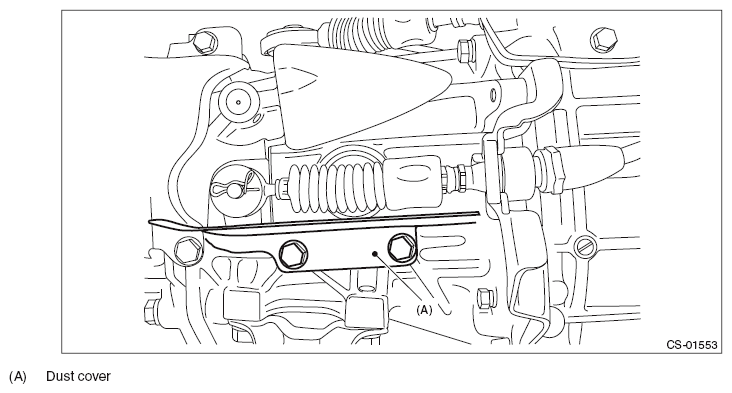

- Remove the dust cover.
Courtesy of SUBARU OF AMERICA, INC.

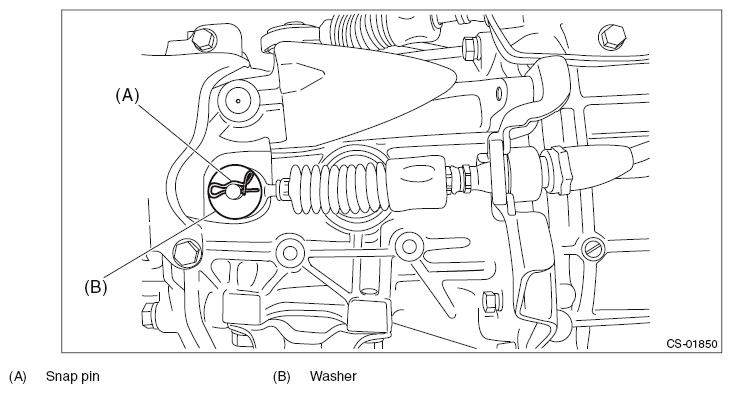

- Remove the snap pin and washer.
Courtesy of SUBARU OF AMERICA, INC.

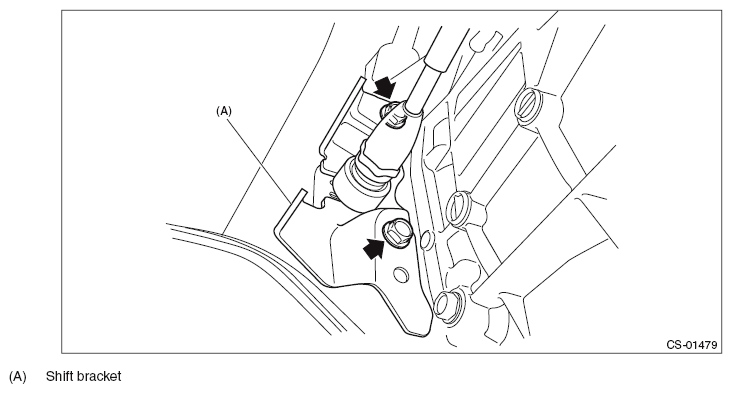

- Remove the bolts holding the shift bracket.
Courtesy of SUBARU OF AMERICA, INC.

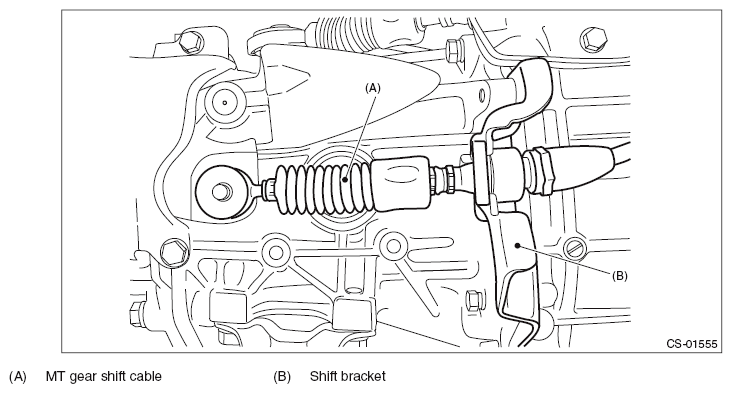

- Remove the shift bracket together with the MT gear shift cable.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the cable cover plate.
Courtesy of SUBARU OF AMERICA, INC.

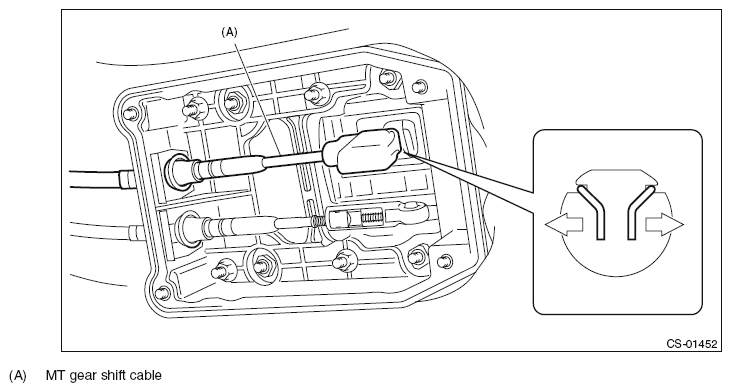

- Disconnect the MT gear shift cable.
CAUTION:
Be careful not to deform the cable inner.
NOTE:
Pull out down the MT gear shift cable to spread the spring.
Courtesy of SUBARU OF AMERICA, INC.

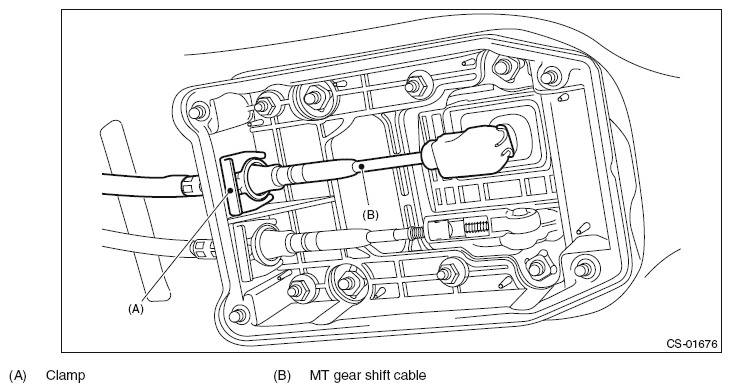

- Remove the clamp.
Courtesy of SUBARU OF AMERICA, INC.
- Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
Courtesy of SUBARU OF AMERICA, INC.
