Thrust Angle

Park the vehicle on a level surface.
Move the vehicle 3 - 4 meters (10 - 13 feet) straight forward.
Draw the center of loci for both the front and rear axles.
Measure distance "L" between the center lines of the axle loci.
Thrust angle: Inspection value

0°±30'

Less than 30' when "L" is 23 mm (0.9 in) or less

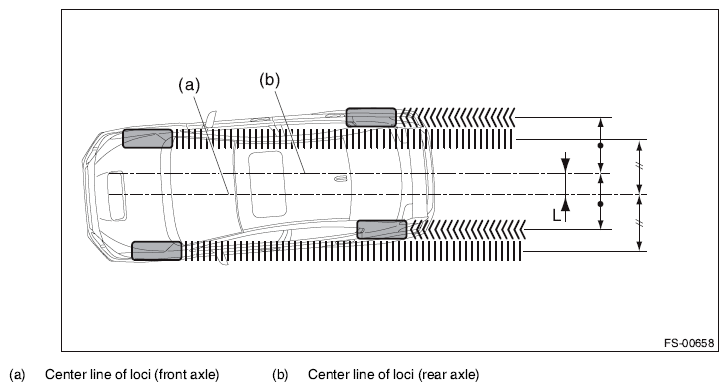

Fig 1: Identifying Vehicle Thrust Angle
Courtesy of SUBARU OF AMERICA, INC.
