Power Steering Control Module: Removal
- Disconnect the ground cable from battery. < Ref. to
BATTERY
, NOTE, Note. >
NOTE:
Disconnect the ground terminal from battery sensor.

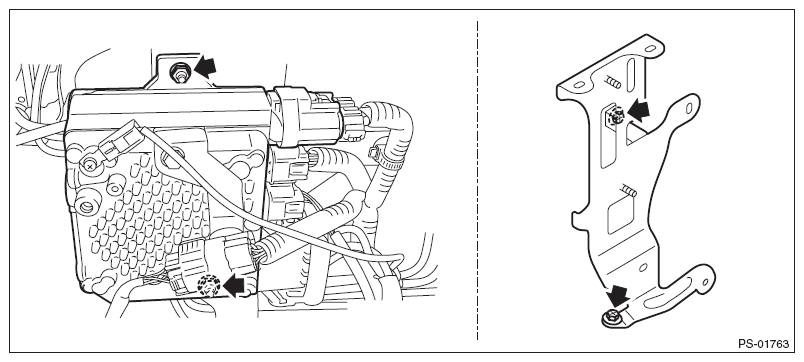

- Remove the power steering control module.
- Disconnect the connector of the power steering control module.
- Remove the nuts, and remove the power steering control module.
- Remove the bracket - control module.
Courtesy of SUBARU OF AMERICA, INC.
