Protection Of Vehicle Under Maintenance And Preparation Of Tools/Equipment

WARNING: This page is about a different variant/trim than selected.

Before work, cover the vehicle body. (Ex. grille cover, fender cover, seat cover and floor mat cover)
Before performing the service operation, prepare tools, equipment, container box, grease and cloth etc.

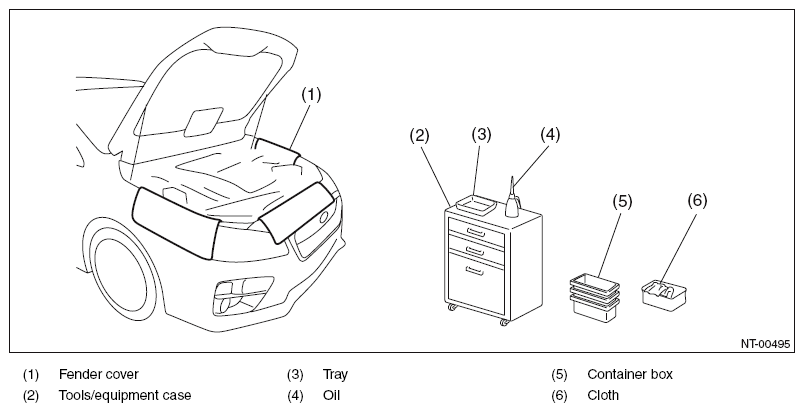

Fig 1: Identifying Fender Cover, Tray, Container Box And Cloth
Courtesy of SUBARU OF AMERICA, INC.
