Exhaust Side
- Disconnect the ground terminal from battery sensor. < Ref. to
BATTERY
, NOTE, Note. >
- Remove the air intake duct. (RH side only) < Ref. to
REMOVAL
, Air Intake Duct. >

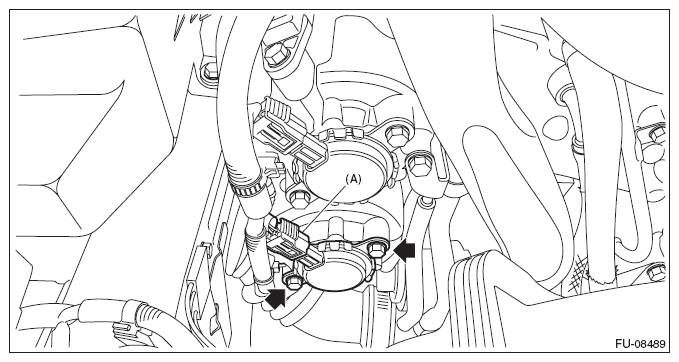

- Disconnect the connector (A) from the oil control solenoid, and remove the oil control solenoid from the chain cover.
- RH side
Courtesy of SUBARU OF AMERICA, INC.
- LH side
Courtesy of SUBARU OF AMERICA, INC.
