Keyless Entry Control Module: Removal
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to
BATTERY
, NOTE, Note. >
NOTE:
For models other than STI model, disconnect the ground terminal from battery sensor.
- Remove the trim panel assembly - rear shelf. < Ref. to
REMOVAL
, Rear Shelf Trim. >

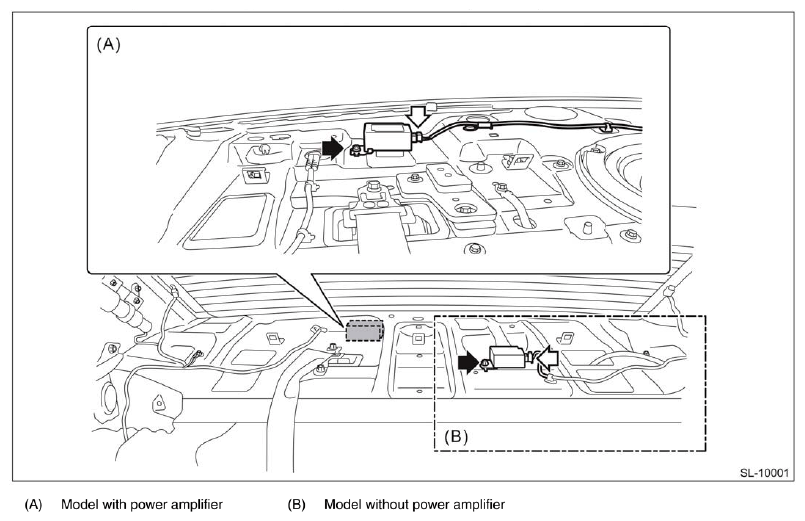

- Remove the keyless entry control module.
- Disconnect the connector.
- Remove the bolt and then remove the keyless entry control module.
NOTE:
For models with power amplifier, installation position of the keyless entry control module is different.
Courtesy of SUBARU OF AMERICA, INC.
