Diagnostic Procedure With Diagnostic Trouble Code (DTC)
>>
DTC P060A Internal Control Module Monitoring Processor Performance
>>
Component Description
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Description

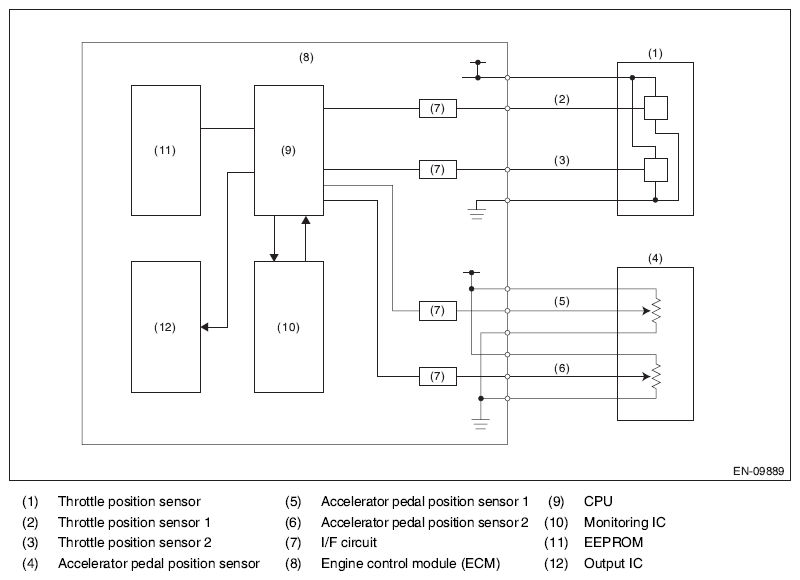

Fig 1: Throttle Position Sensor - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
