System Block Diagram
Main signals used between DCM and relevant CONTROL MODULE

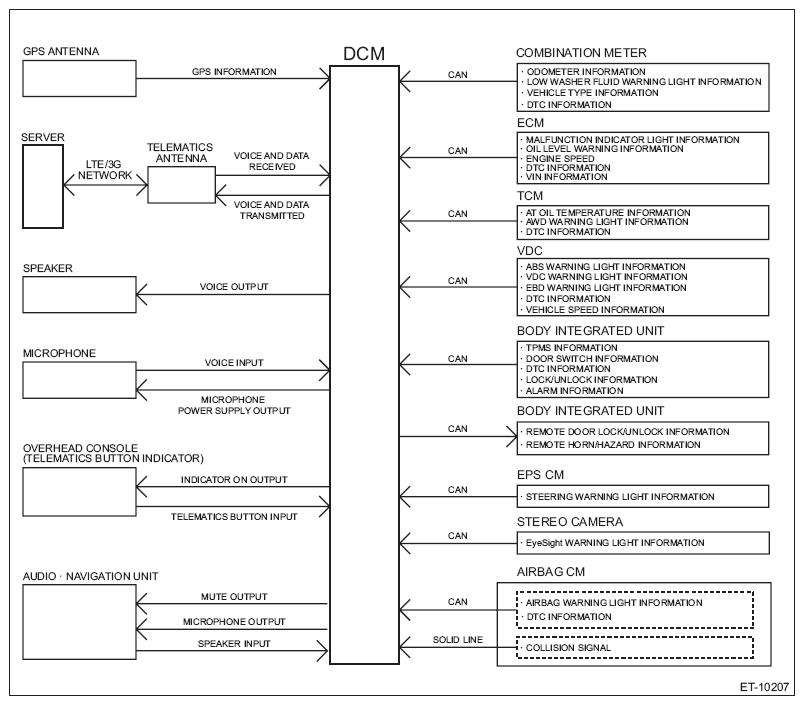

Fig 1: DCM And Relevant CONTROL MODULE System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
