Exploded View

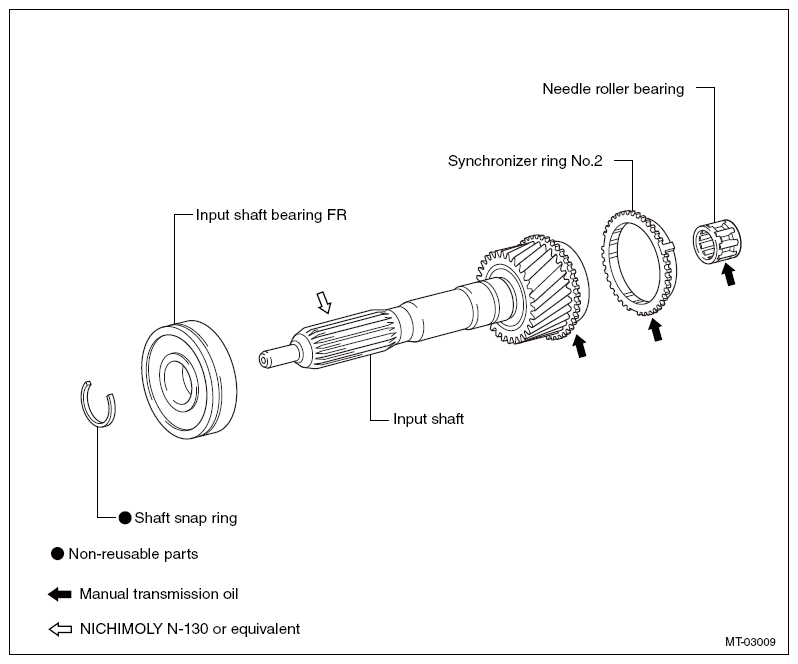

Fig 1: Exploded View Of Input Shaft Assembly
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to
MANUAL TRANSMISSION OIL
)
