Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

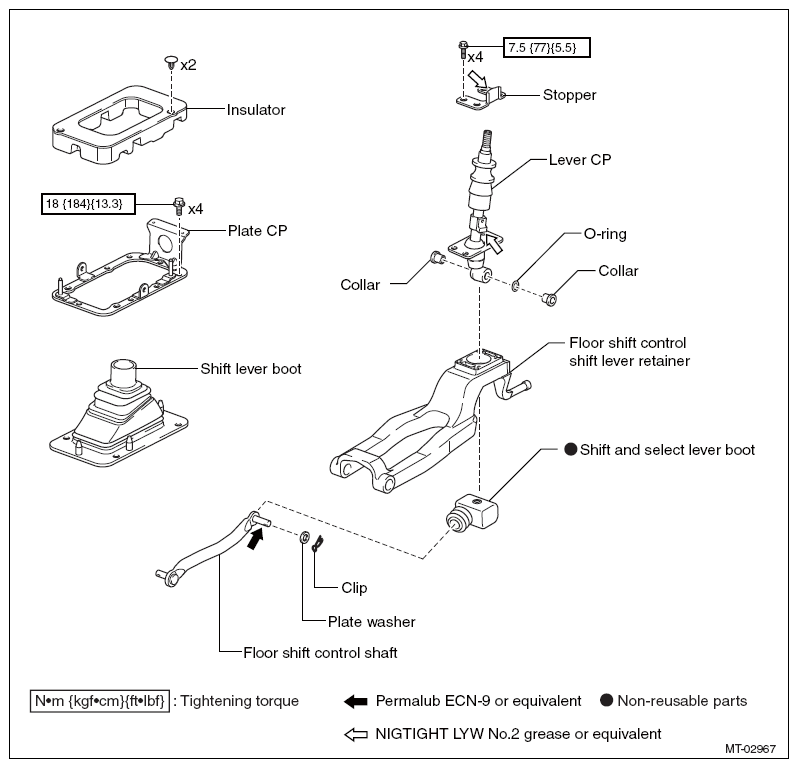

Fig 1: Exploded View Of Floor Shift, Shift Lever Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
