Exploded View

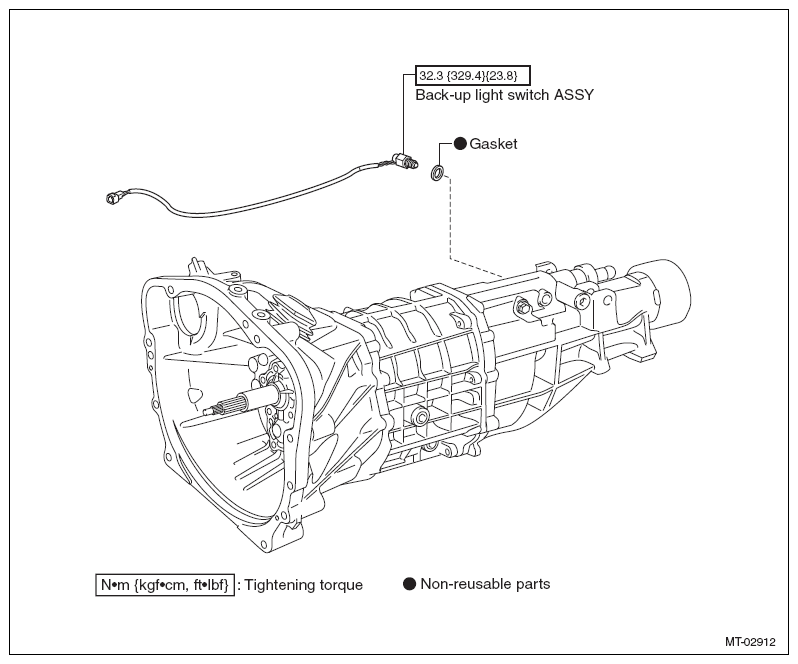

Fig 1: Exploded View Of Back Up Light Switch With Torque Specifications
G08554852Courtesy of SUBARU OF AMERICA, INC.
