Wireless Door Lock Control System (Service Information)
>>
Door Control Transmitter (Without Smart Entry)
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

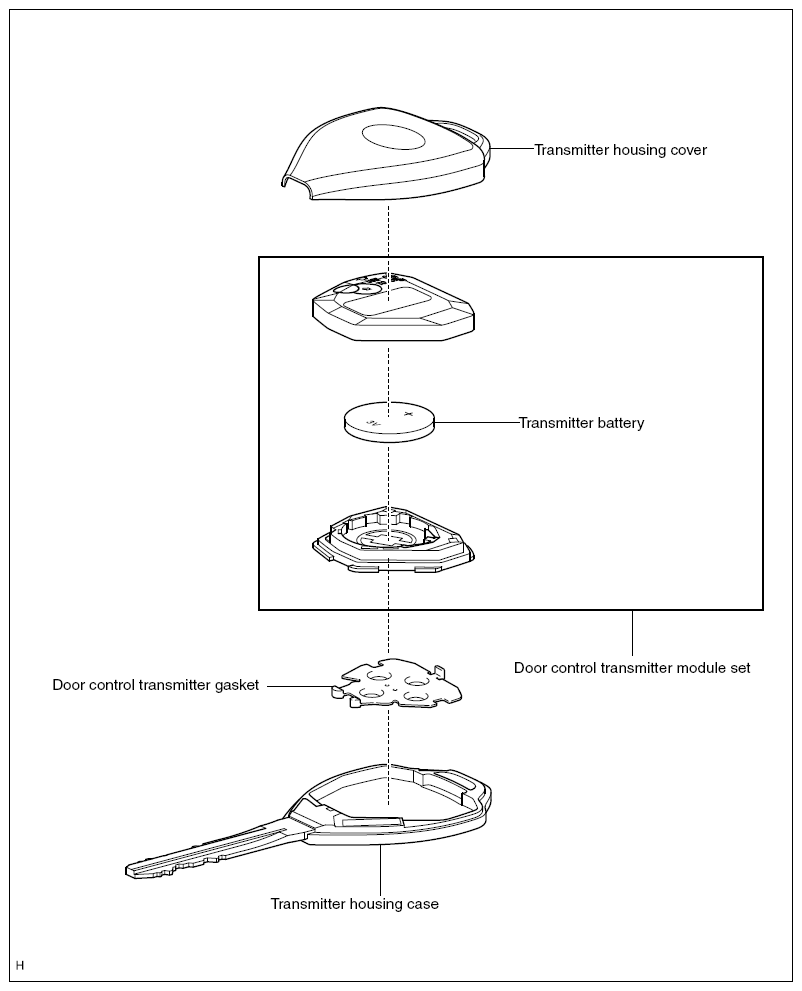

Fig 1: Exploded View Of Door Control Transmitter (Without Smart Entry)
Courtesy of SUBARU OF AMERICA, INC.
