Combination Meter Assembly: Disassembly

  1. Removal of the combination meter glass
    1. Release seven claws and remove the combination meter glass.
      CAUTION: When removing the combination meter glass, do not touch the pointers.

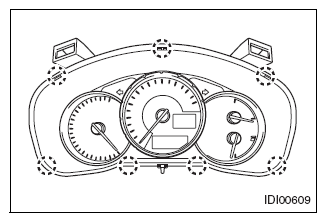

      Fig 1: Locating Combination Meter Glass Claws
      G08557636Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of the combination meter cover
    1. Release six claws and remove the combination meter cover.
      CAUTION: When removing the combination meter cover, do not touch the pointers.

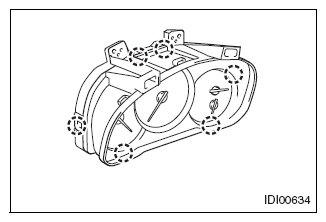

      Fig 2: Locating Combination Meter Cover Claws
      G08557637Courtesy of SUBARU OF AMERICA, INC.
