Wireless Door Lock Control System (Service Information)
>>
Front Door Lock Assembly
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

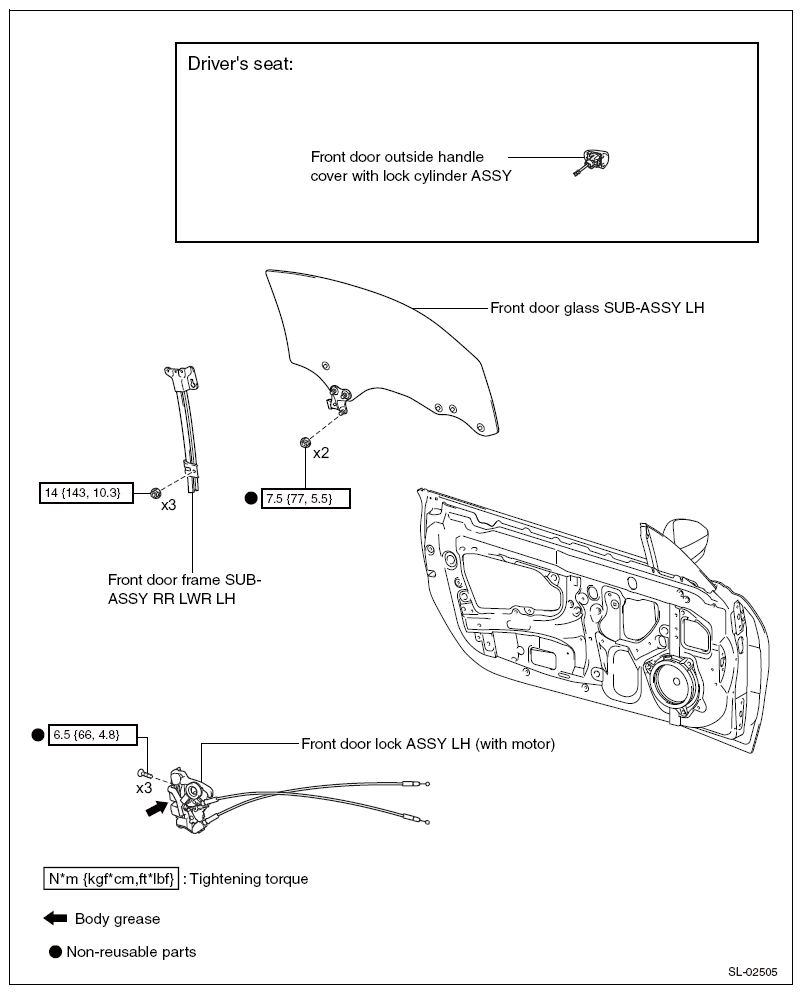

Fig 1: Exploded View Of Front Door Lock Assembly (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Front Door Lock Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
