Generator Bracket

WARNING: This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

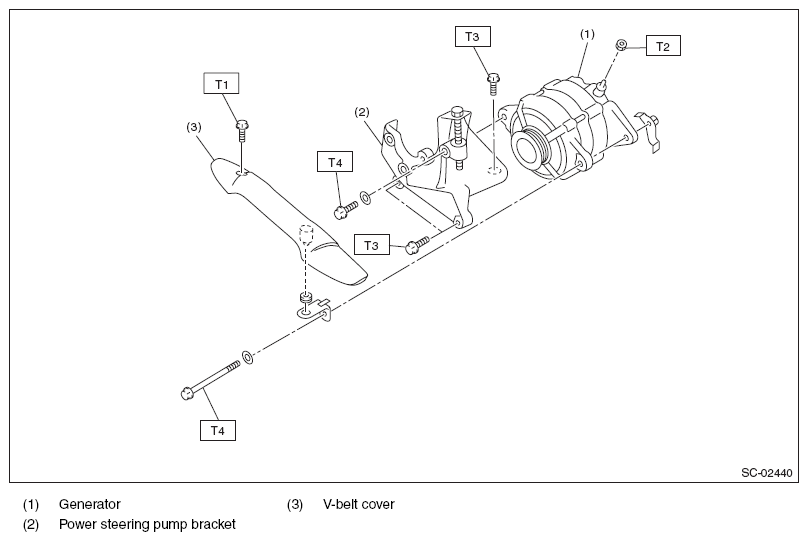

Fig 1: Generator, Power Steering Pump Bracket And V-Belt Cover With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 16 (1.6, 11.8)

T3: 22 (2.2, 16.2)

T4: 25 (2.5, 18.4)
