Oil Level Switch: Wiring Diagram
Engine electrical system <Ref. to
ENGINE PERFORMANCE
, Engine Electrical System.>
CAN communication system <Ref. to
COMPUTER DATA LINES
, CAN Communication System.>

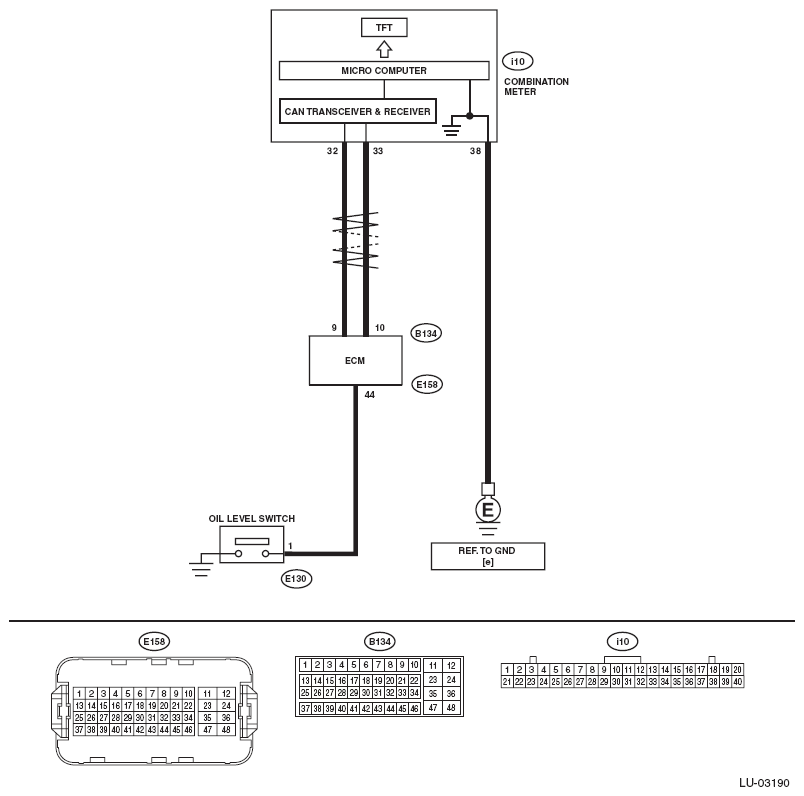

Fig 1: CAN Communication System - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
