Starting System & Charging System (Except STI): Battery: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Remove the battery sensor. <Ref. to REMOVAL , Battery Sensor.>
  3. Disconnect the positive terminal of battery.
  4. Remove the battery cable holder from the battery rod.
  5. Remove the flange nut from battery rod and remove battery holder.

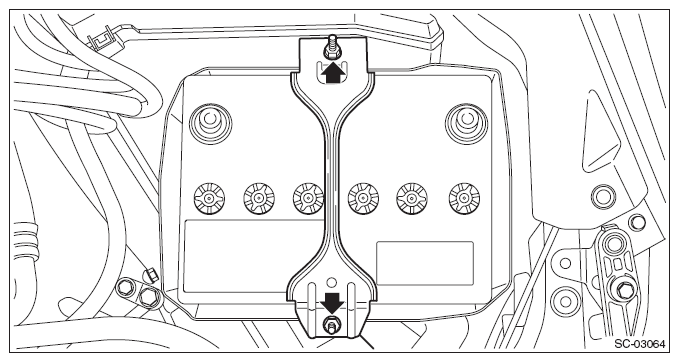

    Fig 1: Locating Battery Rod Flange Nut
    G10267466Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the battery.
