Non-Turbo Model

Remove the V-belt covers.

Fig 1: Locating V-Belt Covers Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground cable from battery.
Remove the V-belts. < Ref. to V-BELT , REMOVAL, V-belt. >
Remove the V-belt cover bracket.

Fig 2: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and terminal (B) from the generator.

Fig 3: Identifying Connector And Terminal From Generator
Courtesy of SUBARU OF AMERICA, INC.

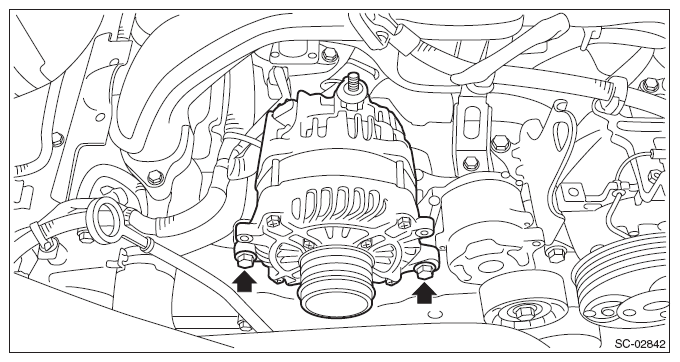

Remove the generator from the generator bracket.

Fig 4: Locating Bolt Of Generator From Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt tensioner from the generator bracket. < Ref. to V-BELT TENSIONER ASSY , REMOVAL, V-belt. >
Remove the generator cord stay from the generator bracket.

Fig 5: Locating Bolt Of Generator Cord Stay From Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.

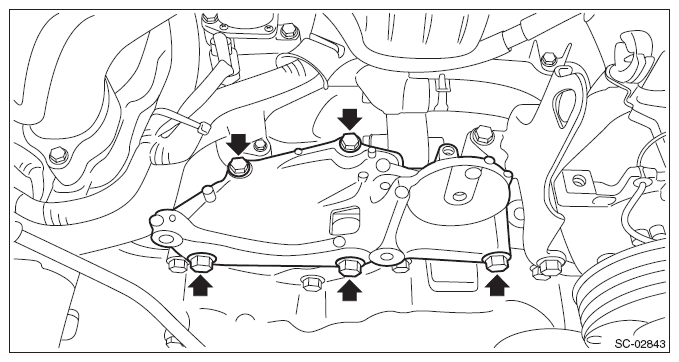

Remove the generator bracket from the engine.

Fig 6: Locating Bolts Of Generator Bracket From Engine
Courtesy of SUBARU OF AMERICA, INC.
