Front Hood Lock And Remote Openers

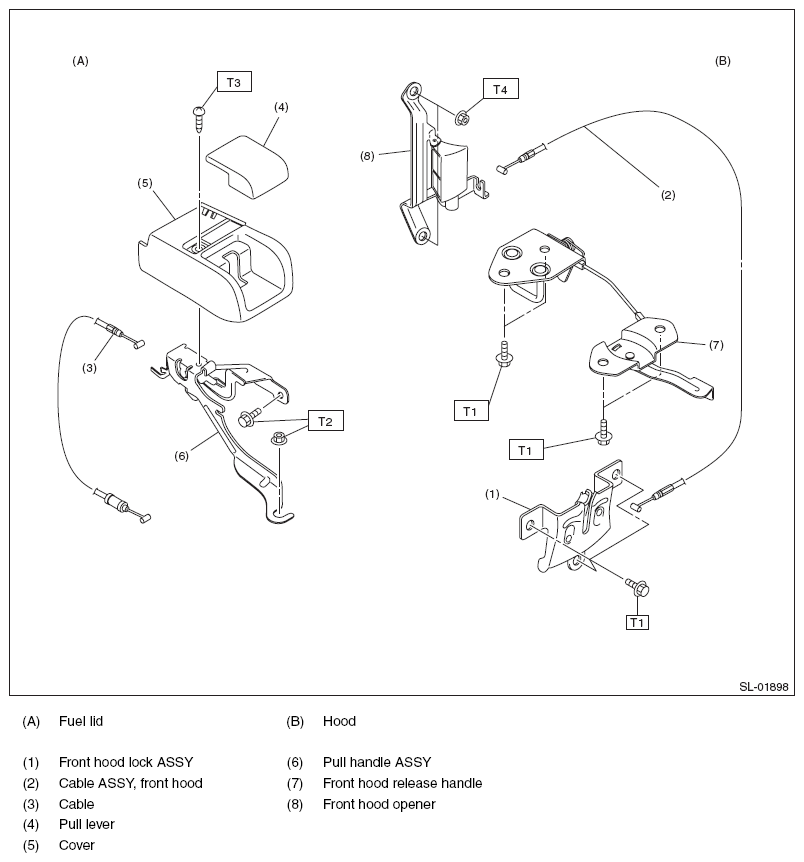

Fig 1: Front Hood Lock And Remote Opener Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 33.0 (3.36, 24.3)

T2: 7.5 (0.76, 5.5)

T3: 4.5 (0.46, 3.3)

T4: 25 (2.55, 18.4)
