Front Hood Lock Assembly: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Open the front hood.
Remove the beam COMPL - front UPR.
1. Remove each bumper clip.

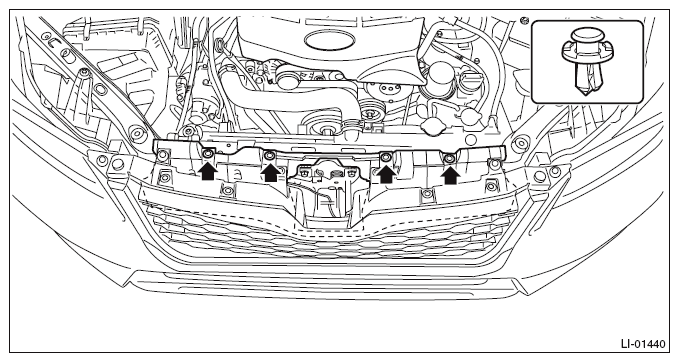

  Fig 1: Locating Bumper Clip
  Courtesy of SUBARU OF AMERICA, INC.
Remove the clip, and remove the bracket - grille.
CAUTION:
- To prevent damage to the bracket - grille, make sure to remove all clips.
- Be careful not to damage the front grille assembly, etc.

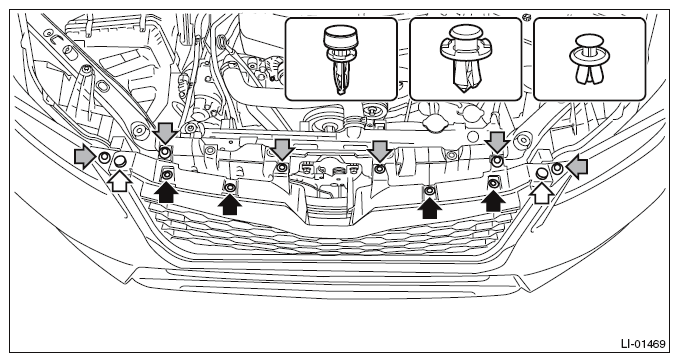

Fig 2: Locating Front Grille Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the lock assembly - front hood.
1. Remove the bolt and clip.

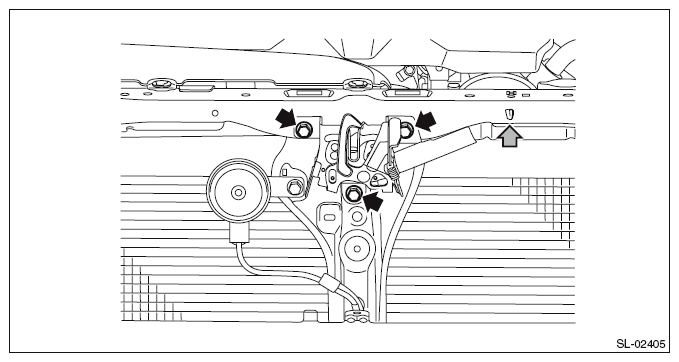

  Fig 3: Locating Lock Assembly Bolts - Front Hood
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the release cable, and detach the lock assembly - front hood.

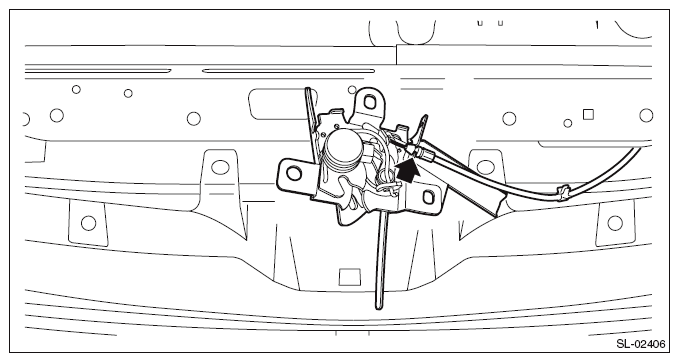

  Fig 4: Locating Lock Assembly Cable - Front Hood
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: When disconnecting the release cable, refer to "FRONT HOOD OPENER" of "Remote Openers". < Ref. to FRONT HOOD OPENER , REMOVAL, Remote Openers. >
