Install the oil level switch and the clip (A) to the oil pan upper.
NOTE:
- Use new O-rings.
- Apply a coat of engine oil to the O-rings.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 1: Locating Bolts Of Oil Pan Upper
Courtesy of SUBARU OF AMERICA, INC.
Install the engine mounting LH onto the engine.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

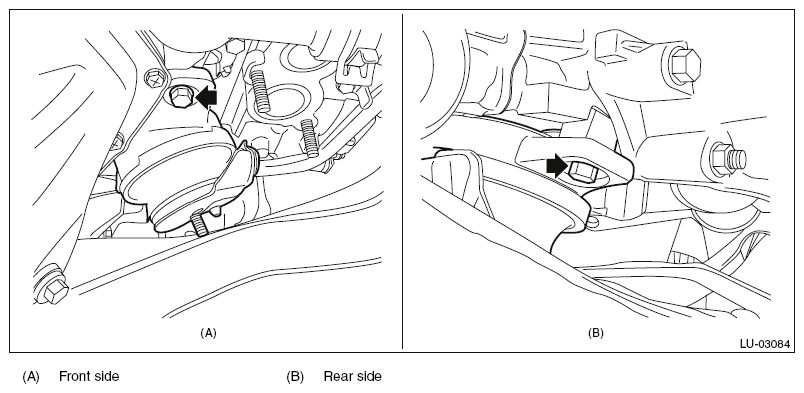

Fig 2: Locating Engine Mounting Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.
Lower the engine and remove the lifting device and wire ropes.

Fig 3: Supporting Engine Using Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt which secures the transmission harness stay to the CVT.
Tightening torque:

15 N.m (1.6 kgf-m, 11.8 ft-lb)

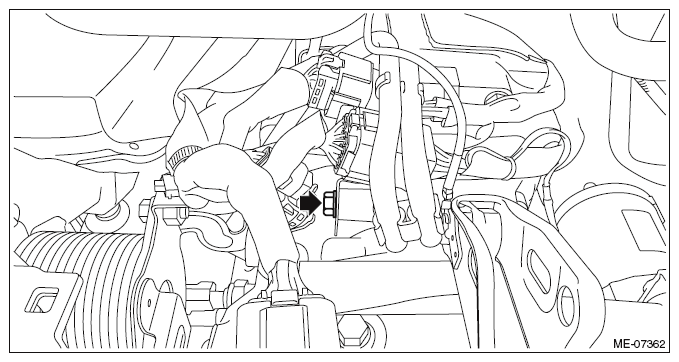

Fig 4: Locating Bolt Of Transmission Harness Stay To CVT
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

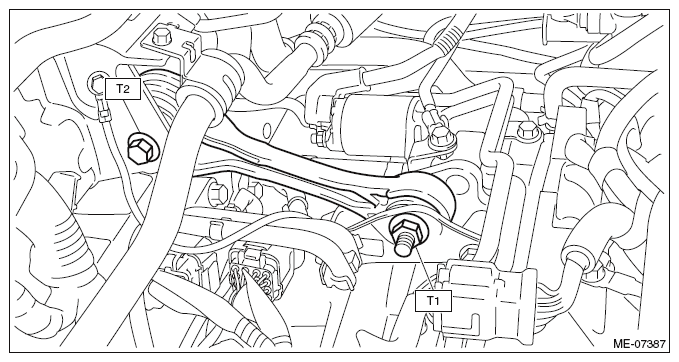

Fig 5: Identifying Pitching Stopper Bolts And Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. < Ref. to INSTALLATION , Intercooler. >
Lift up the vehicle.
Install the electric power steering gearbox. < Ref. to INSTALLATION , Electric Power Steering Gearbox. >
Install the front drive shaft LH. < Ref. to INSTALLATION , Front Drive Shaft. >
Install the nuts which hold the engine mounting to the crossmember.
NOTE: Make sure that locators (A) of the engine mounting are securely inserted.

Tightening torque:

45 N.m (4.6 kgf-m, 33.2 ft-lb)

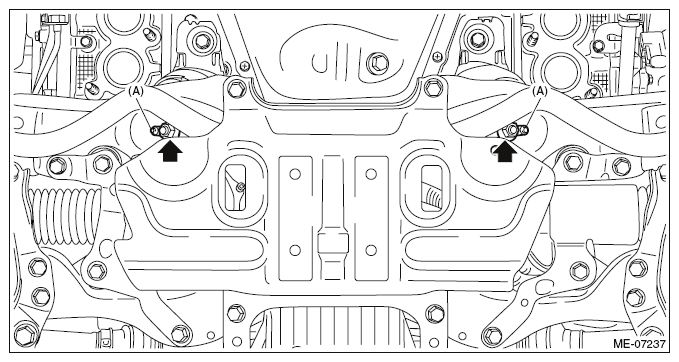

Fig 6: Locating Engine Mounting Locators
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector of oil level switch to the engine harness, and install the clip (A) securing the harness.

Fig 7: Locating Nuts Of Engine Mounting To Front Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Install the air intake duct (rear). < Ref. to INSTALLATION , Air Intake Duct. >
Connect the battery ground terminal.
Install the collector cover.
Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
Change the installation position of the front hood damper from (B) to (A).
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

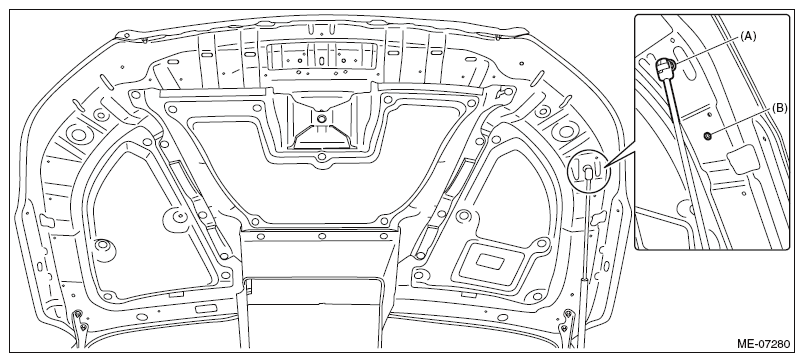

Fig 8: Identifying Front Hood Damper Position
Courtesy of SUBARU OF AMERICA, INC.
Install the front center grille assembly to the front hood.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

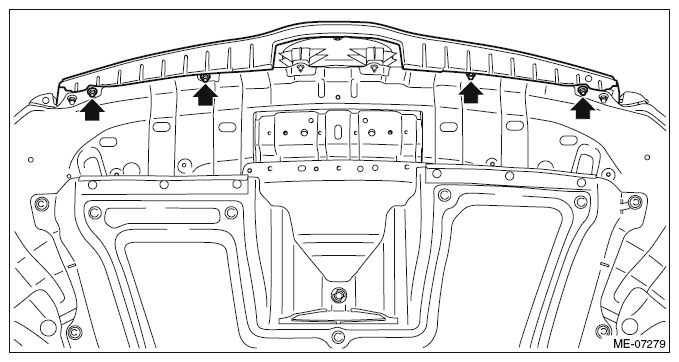

Fig 9: Locating Front Hood Bolts Of Front Center Grille Assembly
Courtesy of SUBARU OF AMERICA, INC.
Align the alignment marks (A), and install the front hood striker to the front hood.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 10: Locating Bolts Of Front Hood Striker To Front Hood
Courtesy of SUBARU OF AMERICA, INC.
Install the upper grille bracket to the front hood, and close the front hood.
Tightening torque:

4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

Fig 11: Locating Front Hood Bolts Of Upper Grille Bracket
Courtesy of SUBARU OF AMERICA, INC.
