Non-Turbo Model

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level switch and the clip (A) to the oil pan upper.
    NOTE:
    • Use new O-rings.
    • Apply a coat of engine oil to the O-rings.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 1: Locating Bolts Of Oil Pan Upper
    G09476529Courtesy of SUBARU OF AMERICA, INC.
  2. Install the engine mounting LH onto the engine.

    Tightening torque:

    35 N.m (3.6 kgf-m, 25.8 ft-lb)

    Fig 2: Locating Engine Mounting Bolts (LH)
    G09476622Courtesy of SUBARU OF AMERICA, INC.
  3. Lower the engine and remove the lifting device and wire ropes.
    Fig 3: Supporting Engine Using Lifting Device And Wire Ropes
    G08316851Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolt and turn the transmission harness counterclockwise to install the transmission harness to the control valve body. (CVT model)

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

    Fig 4: Locating Bolts Of Transmission Harness To Control Valve Body
    G08316859Courtesy of SUBARU OF AMERICA, INC.
  5. Install the transmission harness stay. (CVT model)

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

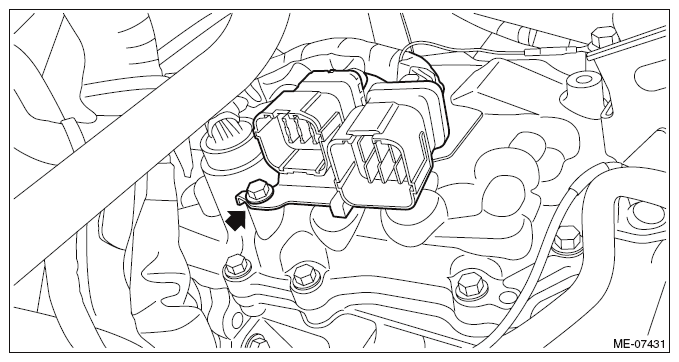

    Fig 5: Locating Transmission Harness Stay Bolts
    G09475907Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transmission case cover. (CVT model)

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

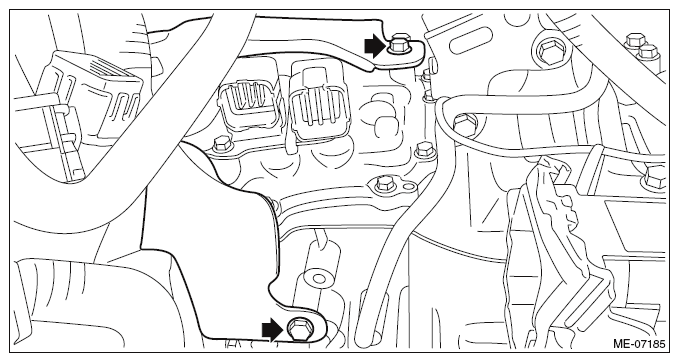

    Fig 6: Locating Transmission Cover Bolts
    G09475906Courtesy of SUBARU OF AMERICA, INC.
  7. Install the pitching stopper.

    Tightening torque:

    T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

    T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

    Fig 7: Identifying Pitching Stopper Bolts And Nut
    G09475923Courtesy of SUBARU OF AMERICA, INC.
  8. Connect the transmission radio ground terminal (C) to the vehicle body, and connect the bulkhead harness connector to the transmission harness connector (A) and the inhibitor harness connector (B). (CVT model)

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    Fig 8: Identifying Inhibitor, Transmission Harness Connector And Transmission Radio Ground Terminal
    G09475904Courtesy of SUBARU OF AMERICA, INC.
  9. Install the electric power steering gearbox. < Ref. to INSTALLATION , Electric Power Steering Gearbox. >
  10. Install the front drive shaft LH. < Ref. to INSTALLATION , Front Drive Shaft. >
  11. Install the nuts which hold the engine mounting to the crossmember. (Hydraulic engine mounting model)
    NOTE: Make sure that locators (A) of the engine mounting are securely inserted.

    Tightening torque:

    45 N.m (4.6 kgf-m, 33.2 ft-lb)

    Fig 9: Locating Nuts Of Engine Mounting To Crossmember (Hydraulic Engine Mounting Model)
    G09476430Courtesy of SUBARU OF AMERICA, INC.
  12. Install the nuts which hold the engine mounting to the crossmember. (Solid engine mounting model)

    Tightening torque:

    45 N.m (4.6 kgf-m, 33.2 ft-lb)

    Fig 10: Locating Nuts Of Engine Mounting To Crossmember (Solid Engine Mounting Model)
    G08316842Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the connector of oil level switch to the engine harness, and install the clip (A) securing the harness.
    Fig 11: Locating Connector Of Oil Level Switch
    G08315830Courtesy of SUBARU OF AMERICA, INC.
  14. Install the front exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
  15. Install the under cover front - transmission.
  16. Install the under cover.
  17. Lower the vehicle.
  18. Install the air intake boot. < Ref. to INSTALLATION , Air Intake Boot. >
  19. Install the air intake duct (rear). < Ref. to INSTALLATION , Air Intake Duct. >
  20. Connect the battery ground terminal.
  21. Install the V-belt cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    Fig 12: Locating V-Belt Cover Bolts
    G09475887Courtesy of SUBARU OF AMERICA, INC.
  22. Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  23. Change the installation position of the front hood damper from (B) to (A).

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

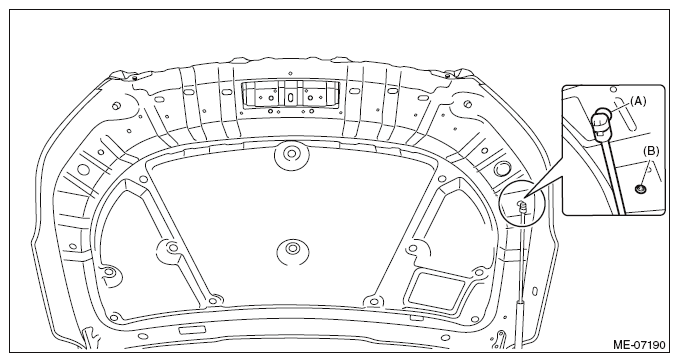

    Fig 13: Identifying Front Hood Damper Position
    G09475886Courtesy of SUBARU OF AMERICA, INC.
  24. Install the front center grille assembly to the front hood.

    Tightening torque:

    4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

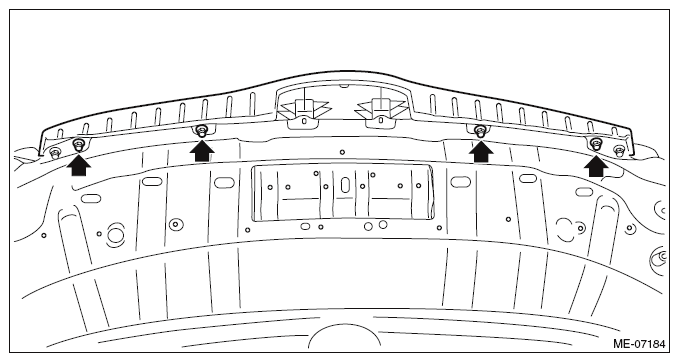

    Fig 14: Locating Front Hood Nut Of Front Center Grille Assembly
    G09475885Courtesy of SUBARU OF AMERICA, INC.
  25. Align the alignment marks (A), and install the front hood striker to the front hood.

    Tightening torque:

    33 N.m (3.4 kgf-m, 24.3 ft-lb)

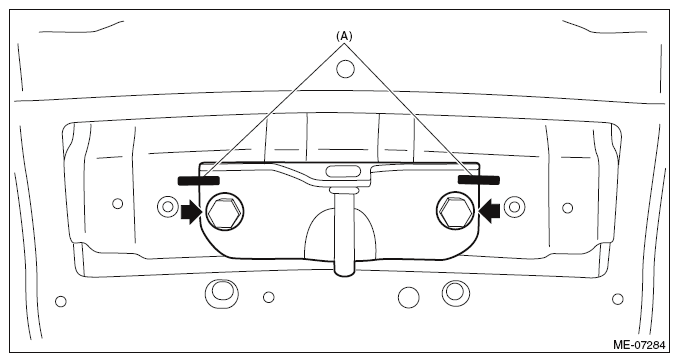

    Fig 15: Locating Bolts Of Front Hood Striker To Front Hood
    G09475947Courtesy of SUBARU OF AMERICA, INC.
  26. Install the upper grille bracket to the front hood.

    Tightening torque:

    4.5 N.m (0.5 kgf-m, 3.3 ft-lb)

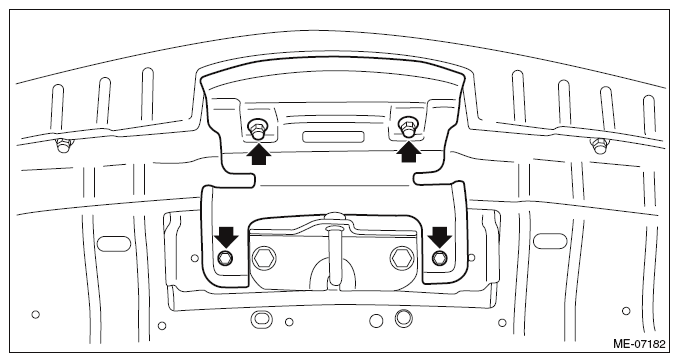

    Fig 16: Locating Bolts And Nut Of Upper Grille Bracket To Front Hood
    G09475882Courtesy of SUBARU OF AMERICA, INC.
