Memory Height Switch: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the cover assembly - instrument panel LWR driver. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the memory height switch.
    1. Remove the screw, release the claws, and then remove the panel - switch.

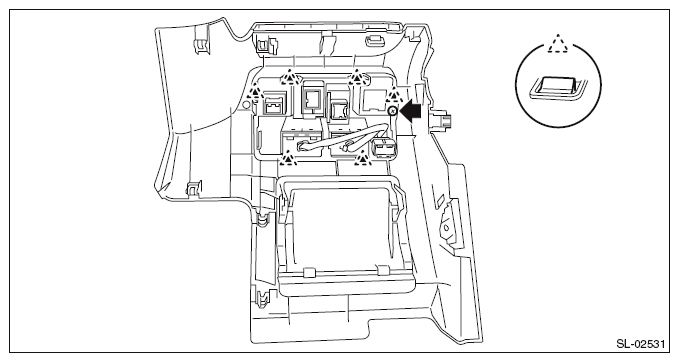

      Fig 1: Locating Memory Height Switch Screw
      G09485123Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws and remove the memory height switch.

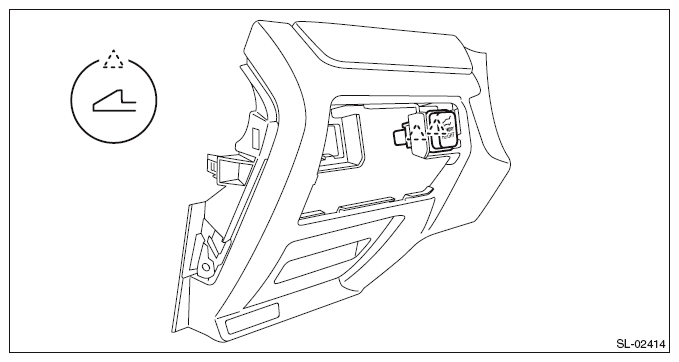

      Fig 2: Identifying Memory Height Switch
      G09485124Courtesy of SUBARU OF AMERICA, INC.
