Battery Current Sensor & Battery Temperature Sensor

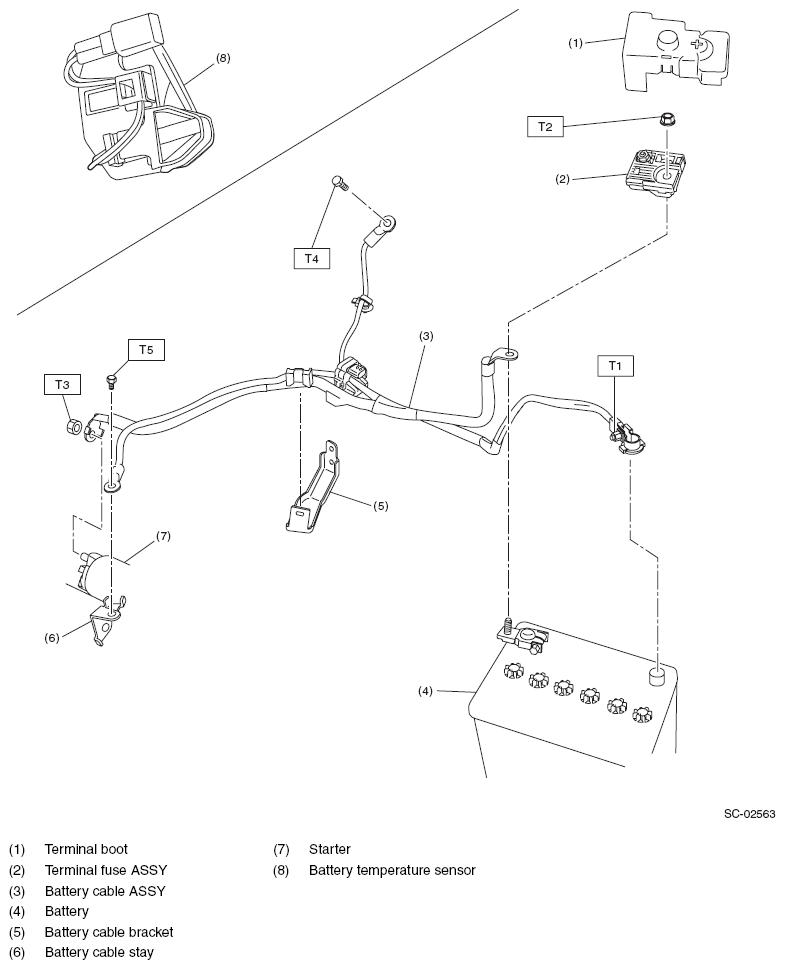

Fig 1: Identifying Battery Current Sensor & Battery Temperature Sensor Components

Courtesy of SUBARU OF AMERICA, INC.

Terminal boot (7) Starter Tightening torque: N.m (kgf-m, ft-lb)

Terminal fuse ASSY (8) Battery temperature sensor T1: 6 (0.6, 4.4)

T2: 7.5 (0.8, 5.5)

T3: 11 (1.1, 8.1)

T4: 13 (1.3, 9.6)

T5: 14 (1.4, 10.3)
