BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Vehicle Stability Control System
>>
Vehicle Stability Control System
>>
Brake Warning Light Remains ON
>>
Circuit figure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit figure

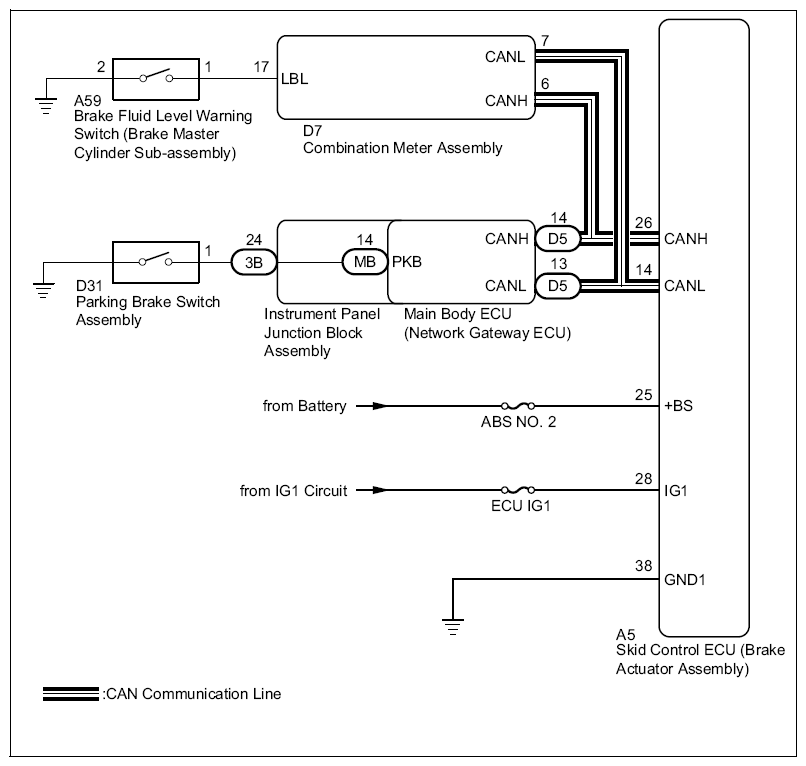

Fig 1: Skid Control ECU (Brake Actuator Assembly) - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
