Diagnostic procedure

Drive according to the drive pattern described below.

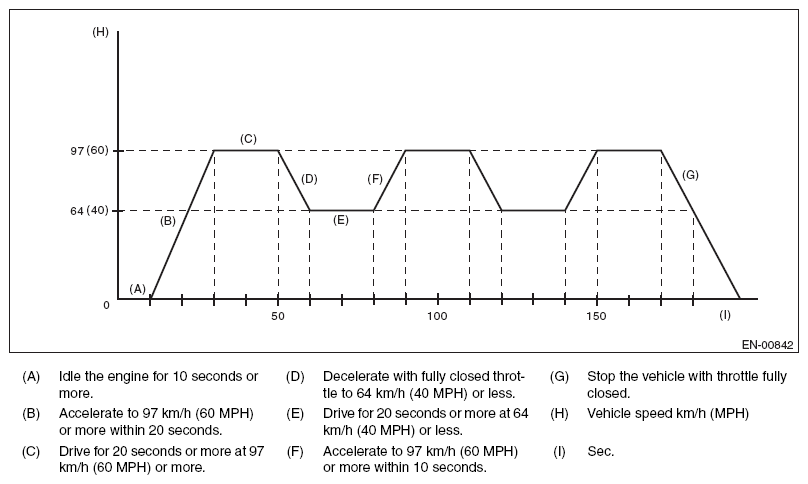

Fig 1: Vehicle Driving Pattern (Drive Cycle C)
G08581590Courtesy of SUBARU OF AMERICA, INC.
